Connect

release. Use Special Service Tool: 310-S039 (T90T-9550-S) Disconnect Tool, Spring Lock Coupling.

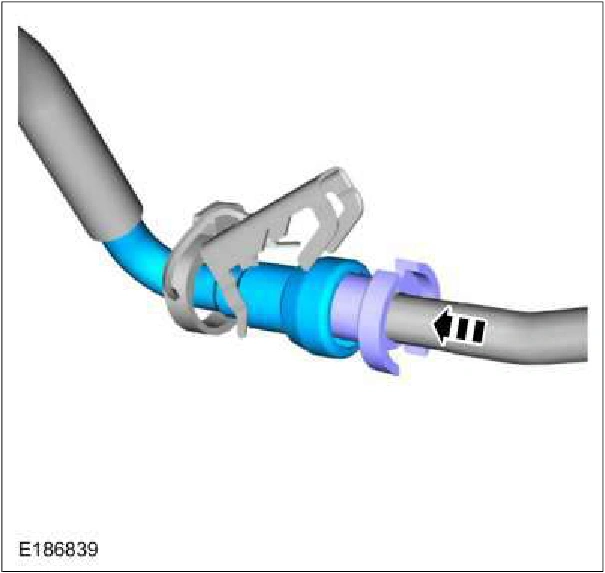

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3258Original colors & callouts · Select to enlarge

5. Separate the spring lock coupling from the tube.

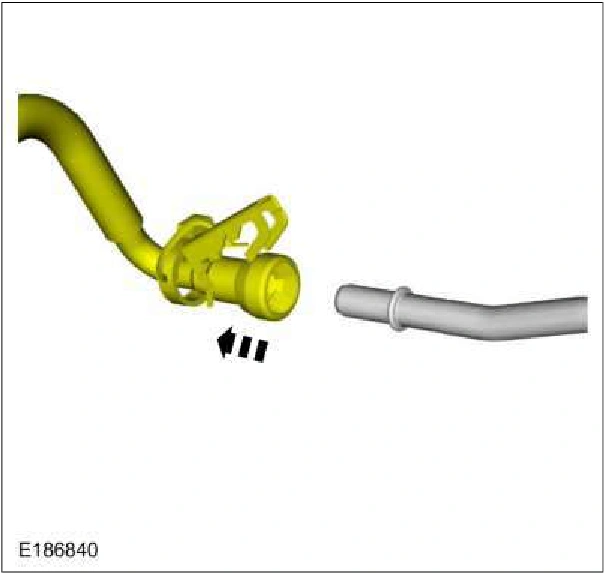

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3258Original colors & callouts · Select to enlarge

1. Align and push the spring lock coupling onto the tube until fully seated.

Source reference 3258
