310-00C Fuel System - General Information - 5.0L — 2016 workshop reference 3259

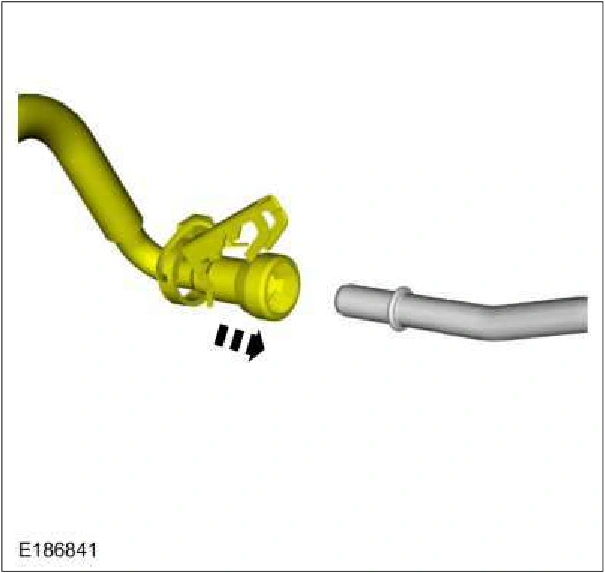

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3259Original colors & callouts · Select to enlarge

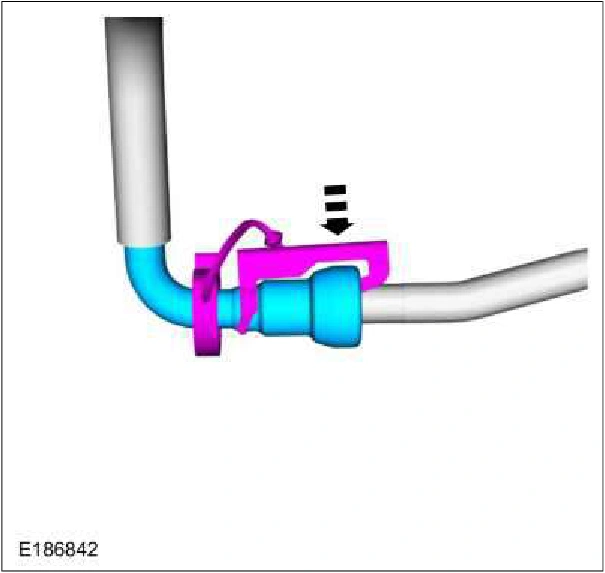

2. If equipped, install the fuel tube safety clip.

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3259Original colors & callouts · Select to enlarge

3. Pull on the coupling to make sure it is fully engaged.

4. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
