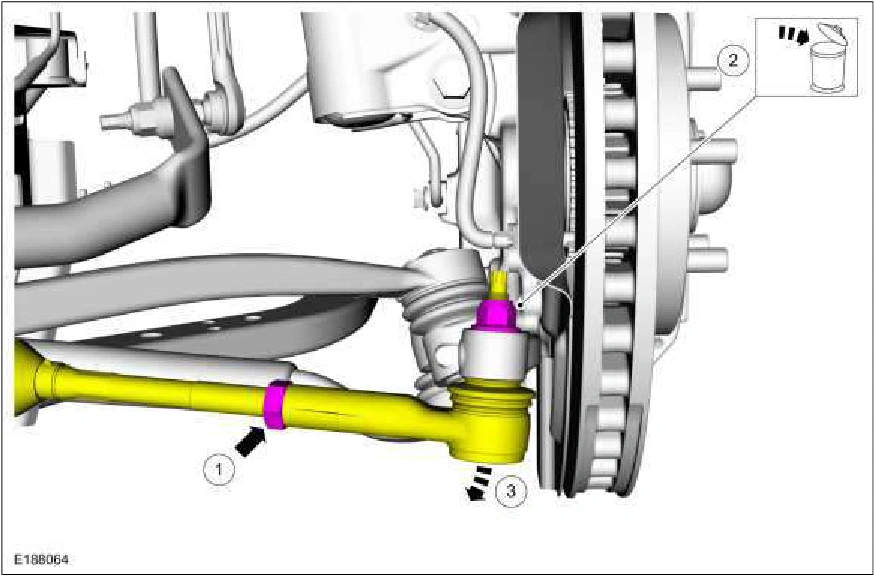

Tie Rod End — original illustration 1, reference 3355Original colors & callouts · Select to enlarge

4. NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie-rod end.

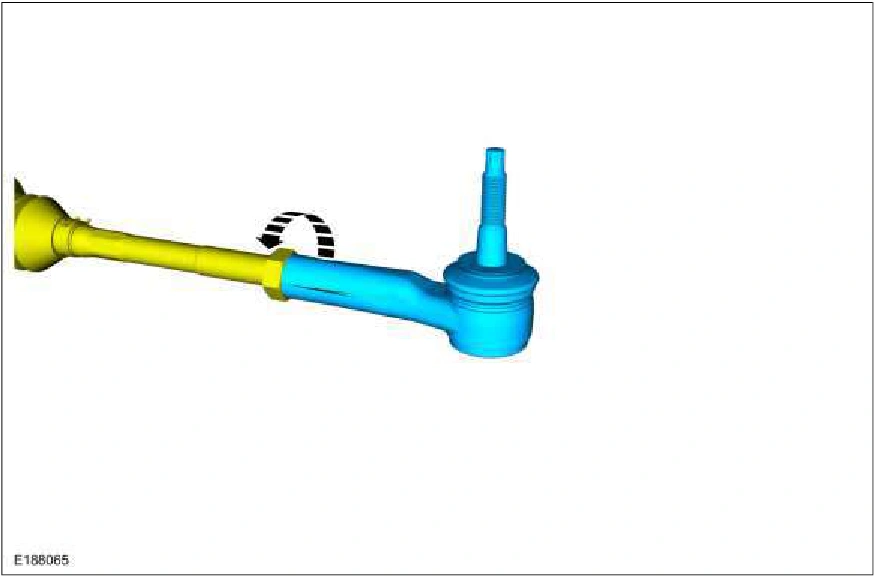

Tie Rod End — original illustration 2, reference 3355Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).

Source reference 3355
