Tie Rod — 2016 workshop reference 3352

Torque : 46 lb.ft (63 Nm)

2. Install the underbody shield bolt.

Tie Rod — original illustration 1, reference 3352Original colors & callouts · Select to enlarge

8. NOTE: If equipped.

1. Position the underbody shield and install the 2 rearward underbody shield bolts.

2. Install the 2 remaining underbody shield bolts.

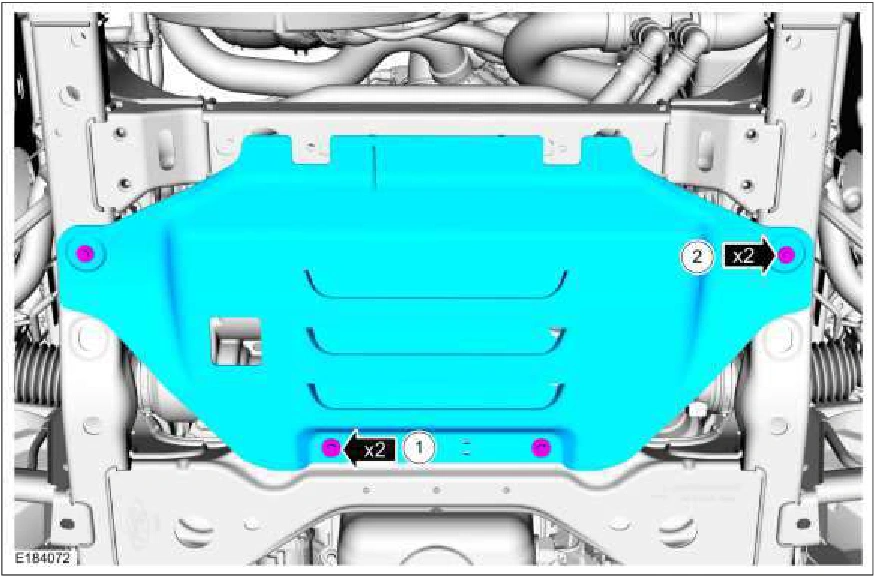

Tie Rod — original illustration 2, reference 3352Original colors & callouts · Select to enlarge

9. NOTE: If equipped.

Position the underbody shield and install the bolts.
