Tie Rod — 2016 workshop reference 3351

housing bead and the groove in the inner tie rod.

Install the new steering gear bellows boot.

2. Install the new inner bellows boot clamp. Use the General Equipment: Boot Clamp Pliers

3. Install the new outer bellows boot clamp.

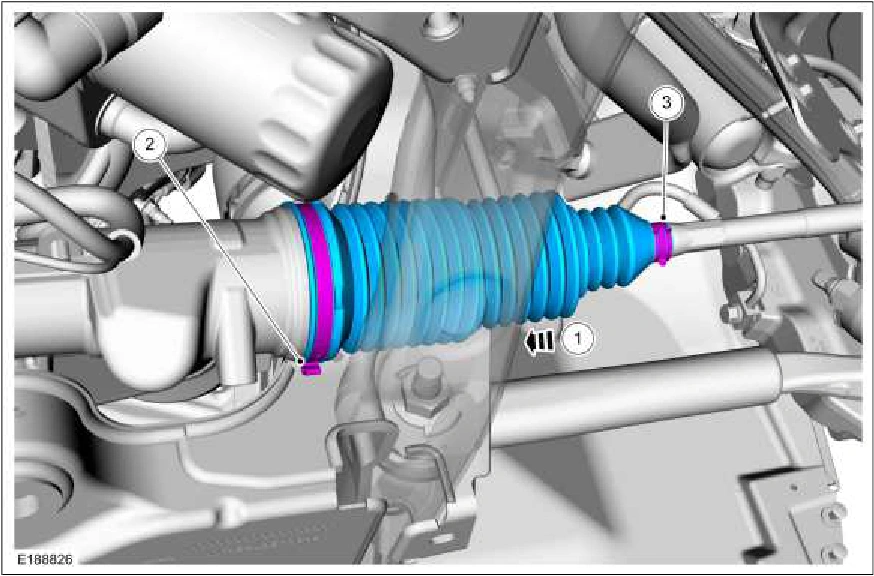

Tie Rod — original illustration 1, reference 3351Original colors & callouts · Select to enlarge

6. Thread the tie-rod end jam nut onto the inner tie rod.

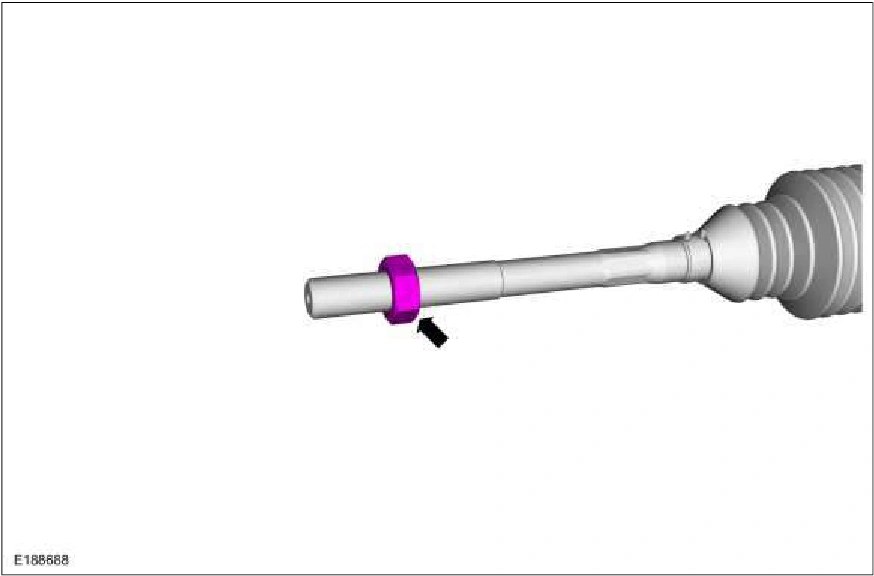

Tie Rod — original illustration 2, reference 3351Original colors & callouts · Select to enlarge

Step 7

1. NOTE: If equipped.

Position the V-brace and underbody shield and install the 6 V-brace bolts.

Source reference 3351
