Tie Rod — 2016 workshop reference 3349

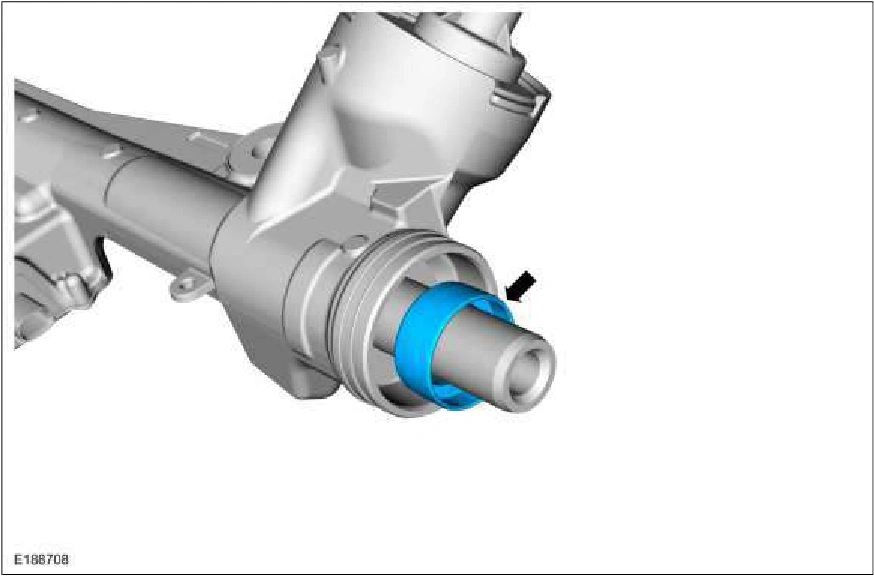

Tie Rod — original illustration 1, reference 3349Original colors & callouts · Select to enlarge

2. NOTICE: Hold the steering gear rack while loosening the inner tie rod. Failure to hold the rack

securely could result in steering gear damage.

NOTICE: The steering gear rack holding tool must be reversed to install the RH tie rod or damage to the rack and/or special tool may occur.

NOTE: The holding tool can only be used on the LH side of the steering gear.

Using the special tool to hold the rack and an appropriate size crows foot wrench or open end wrench, install the inner tie rod and steering stop. Use Special Service Tool: 204-816 Rack Holding Tool. Torque : 89 lb.ft (120 Nm)

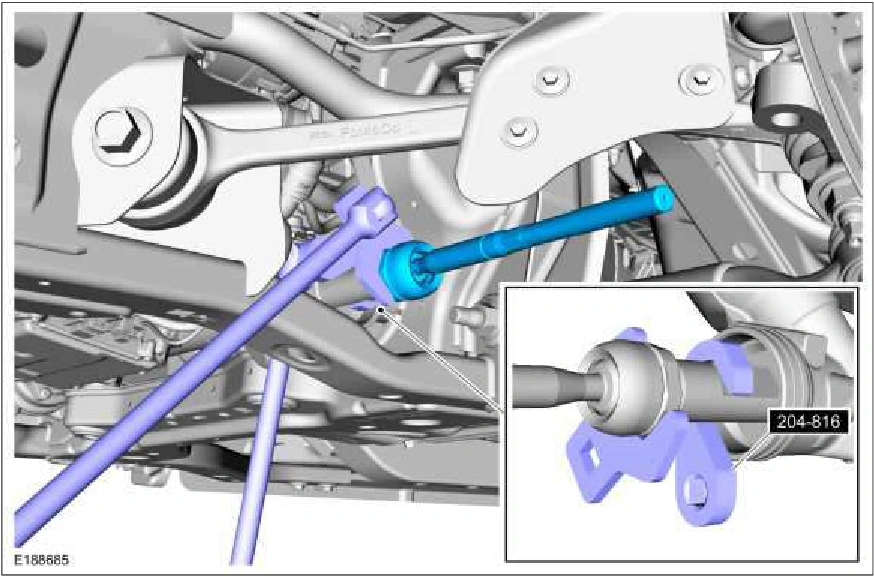

Tie Rod — original illustration 2, reference 3349Original colors & callouts · Select to enlarge

3. NOTICE: Install the steering stop using hand force only. Striking the steering stop may cause
