Tie Rod — 2016 workshop reference 3346

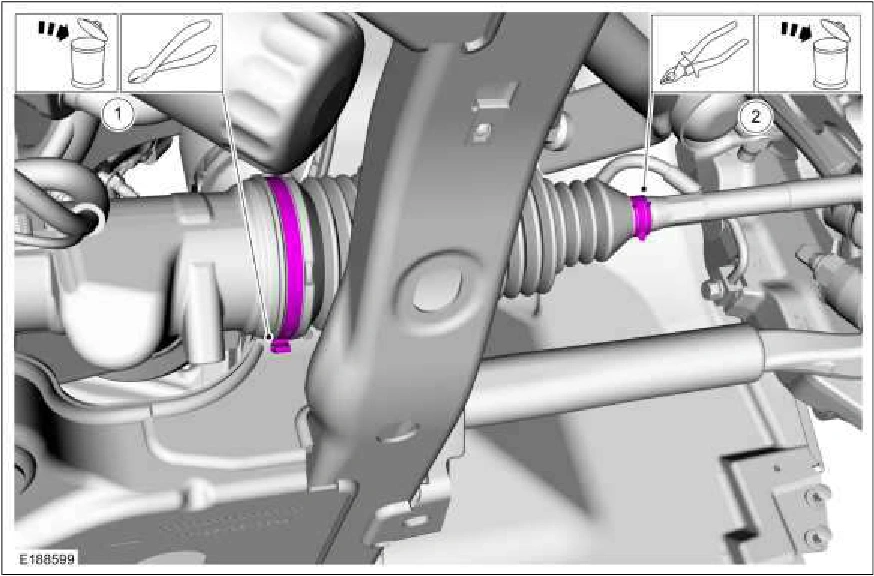

Tie Rod — original illustration 1, reference 3346Original colors & callouts · Select to enlarge

7. NOTE: Move the bellows boot enough to gain access to the inner tie rod nut.

Position aside the bellows boot.

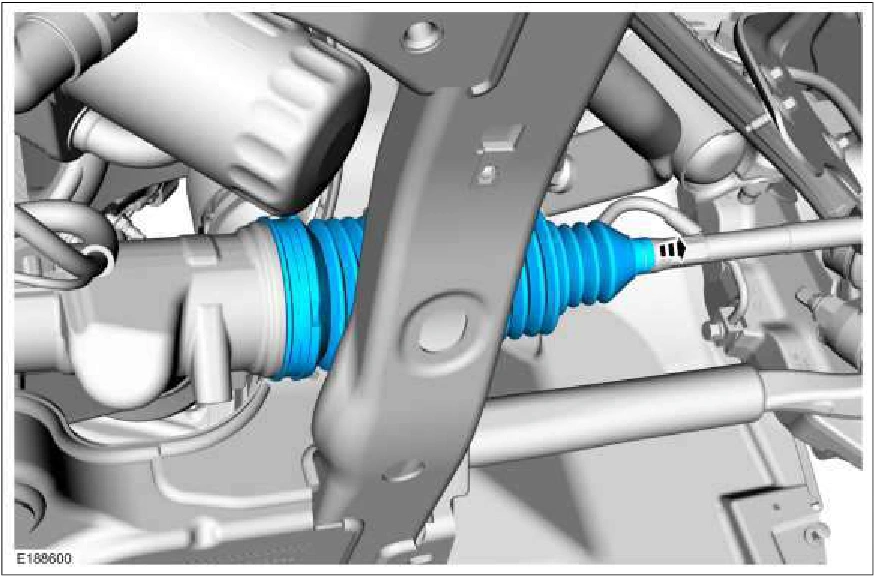

Tie Rod — original illustration 2, reference 3346Original colors & callouts · Select to enlarge

8. Position aside the steering stop.
