Tie Rod — 2016 workshop reference 3345

Tie Rod — original illustration 1, reference 3345Original colors & callouts · Select to enlarge

Step 5

1. NOTE: If equipped.

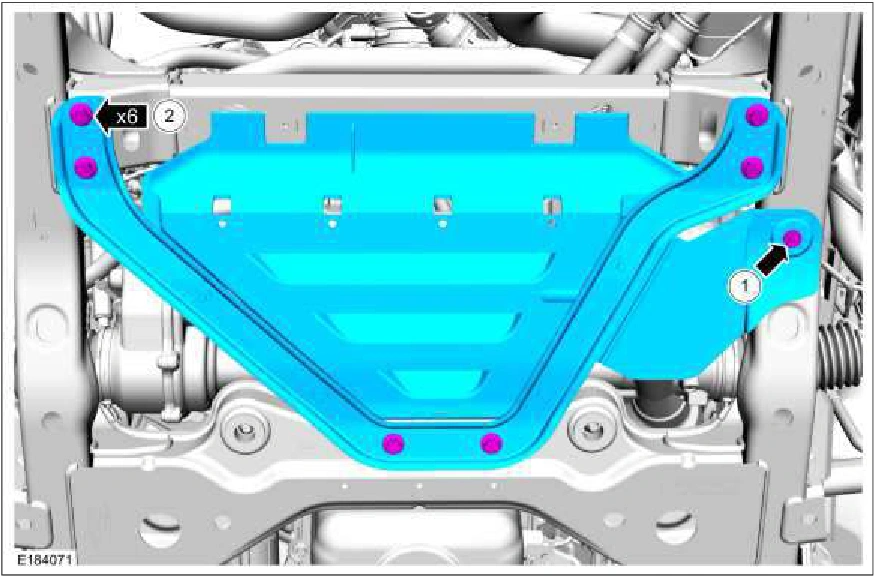

Remove the underbody shield bolt.

2. NOTE: It is not necessary to separate the underbody shield from the V-brace.

Remove the 6 V-brace bolts and remove the V-brace and underbody shield.

Tie Rod — original illustration 2, reference 3345Original colors & callouts · Select to enlarge

Step 6

1. Remove and discard the inner bellows boot clamp.

2. Remove and discard the outer bellows boot clamp.

Source reference 3345
