Tie Rod — 2016 workshop reference 3344

Tie Rod — original illustration 1, reference 3344Original colors & callouts · Select to enlarge

3. NOTE: If equipped.

Remove the bolts and the underbody shield.

Tie Rod — original illustration 2, reference 3344Original colors & callouts · Select to enlarge

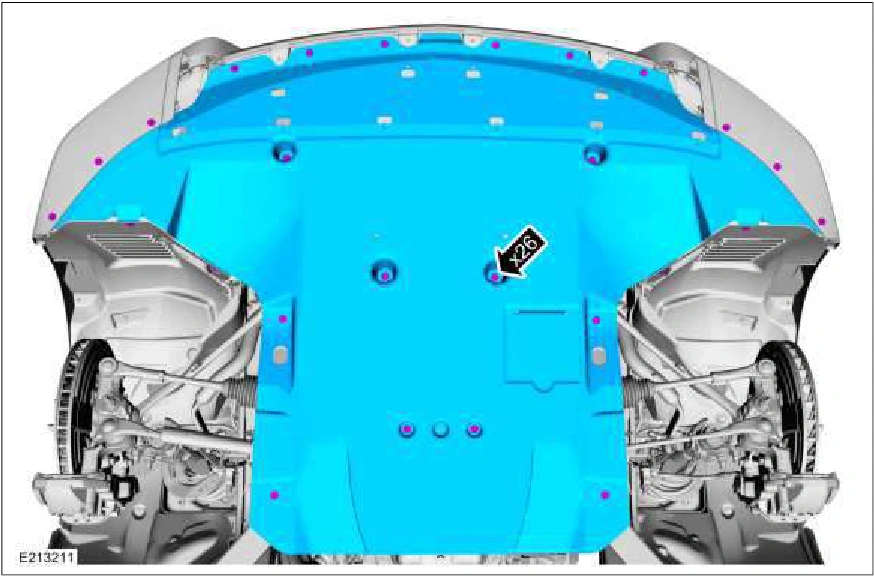

4. NOTE: If equipped.

1. Remove the 2 rearward underbody shield bolts.

2. Remove the 2 remaining underbody shield bolts and remove the underbody shield.

Source reference 3344

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
