37. Turn the steering wheel lock-to-lock to assure the steering stops are fully seated.

2.3L EcoBoost (231kW/314PS)

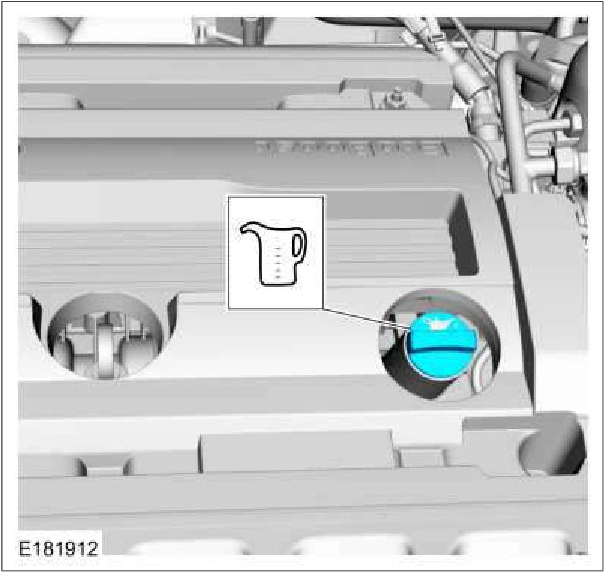

38. Fill the engine with clean engine oil. Refer to: Specifications (303-01A Engine - 2.3L EcoBoost (231kW/314PS), Specifications). Material : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Steering Gear — original illustration 2, reference 3341Original colors & callouts · Select to enlarge

All vehicles

39. When installing a new steering gear, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). Connect a scan tool and follow the scan tool instructions.
