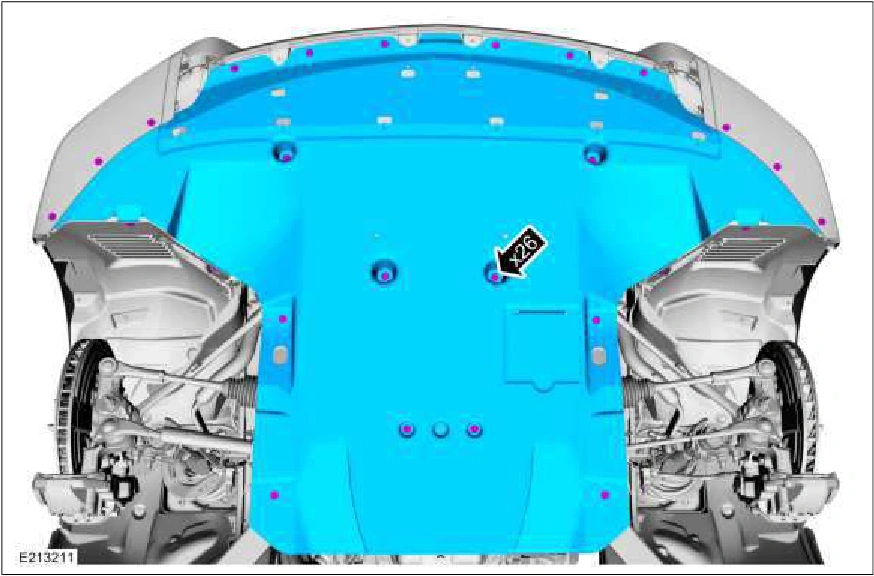

Steering Gear — original illustration 1, reference 3340Original colors & callouts · Select to enlarge

34. NOTE: If equipped.

Position the underbody shield and install the bolts.

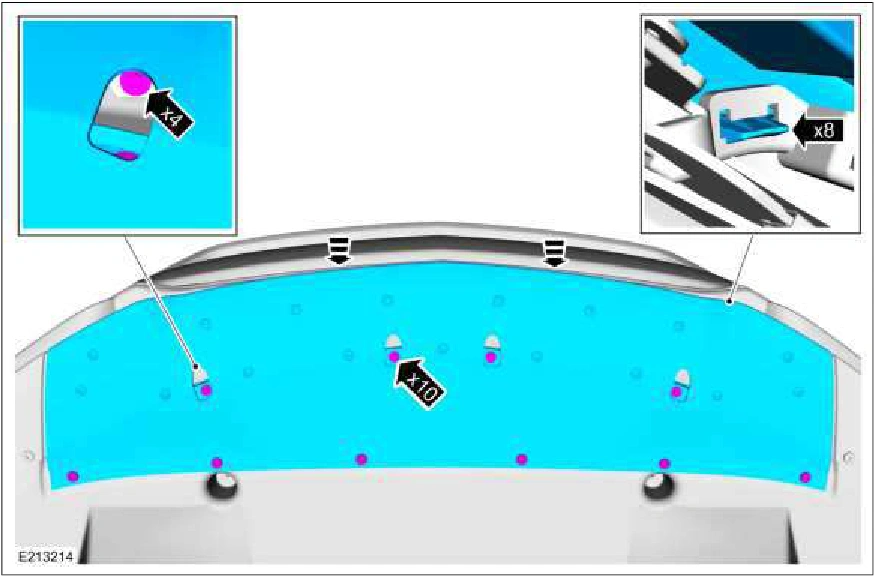

Steering Gear — original illustration 2, reference 3340Original colors & callouts · Select to enlarge

35. On both sides. Install the tie rod end. Refer to: Tie Rod End (211-02 Power Steering, Removal and Installation).

Step 36

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts. Torque : 80 lb.in (9 Nm)
