29. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check (211-04 Steering Column, General Procedures).

Step 30

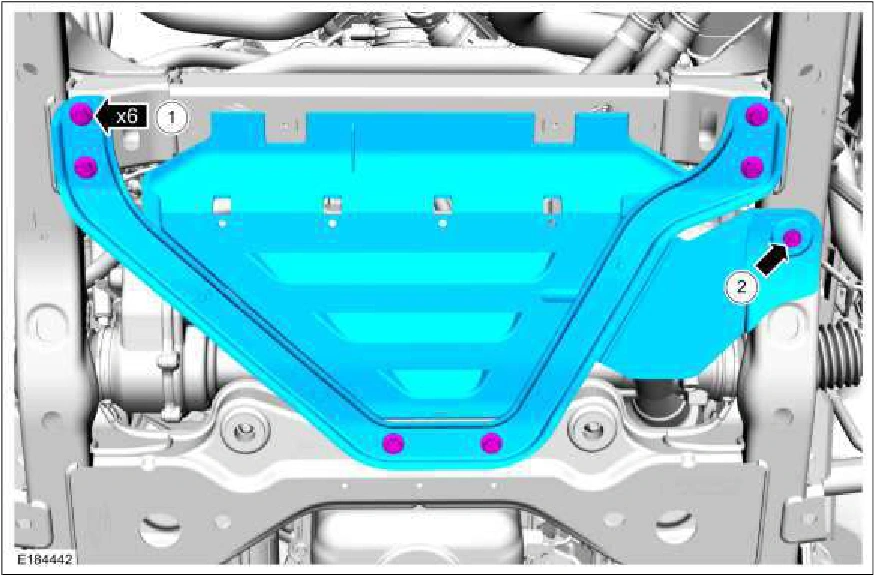

1. NOTE: If equipped.

Position the V-brace and underbody shield and install the 6 V-brace bolts. Torque : 46 lb.ft (63 Nm)

2. Install the underbody shield bolt.

Steering Gear — original illustration 1, reference 3338Original colors & callouts · Select to enlarge

31. NOTE: If equipped.

1. Position the underbody shield and install the 2 rearward underbody shield bolts.

2. Install the 2 remaining underbody shield bolts.
