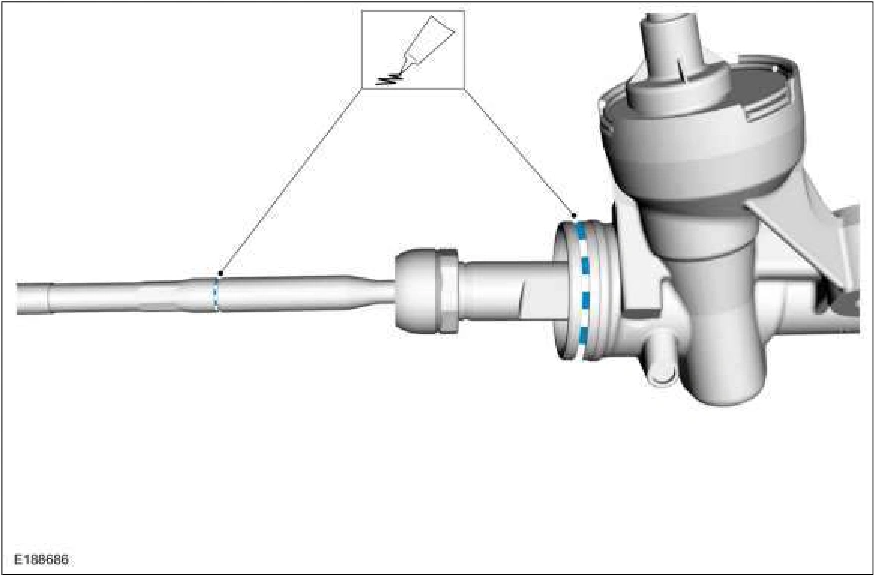

24. NOTE: LH side shown, RH side similar.

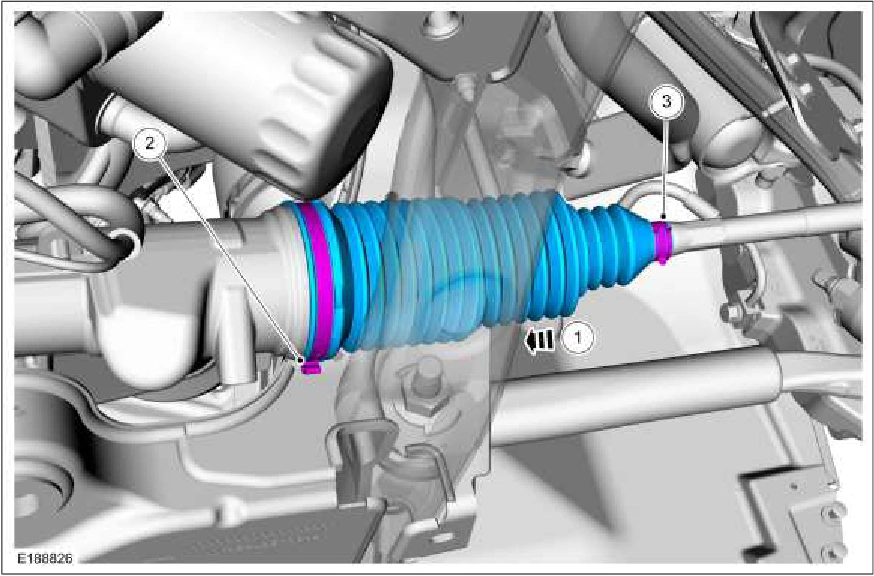

1. NOTE: Make sure the steering gear bellows boot is positioned correctly over the steering gear housing bead and the groove in the inner tie rod.

On both sides. Install the new steering gear bellows boot.

2. On both sides. Install the new inner bellows boot clamp. Use the General Equipment: Boot Clamp Pliers

3. On both sides. Install the new outer bellows boot clamp.

Steering Gear — original illustration 2, reference 3335Original colors & callouts · Select to enlarge

25. On both sides. Thread the tie-rod end jam nut onto the inner tie rod.
