2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,336 / 6,619HTML edition
← Chapter contentsProcedure contents

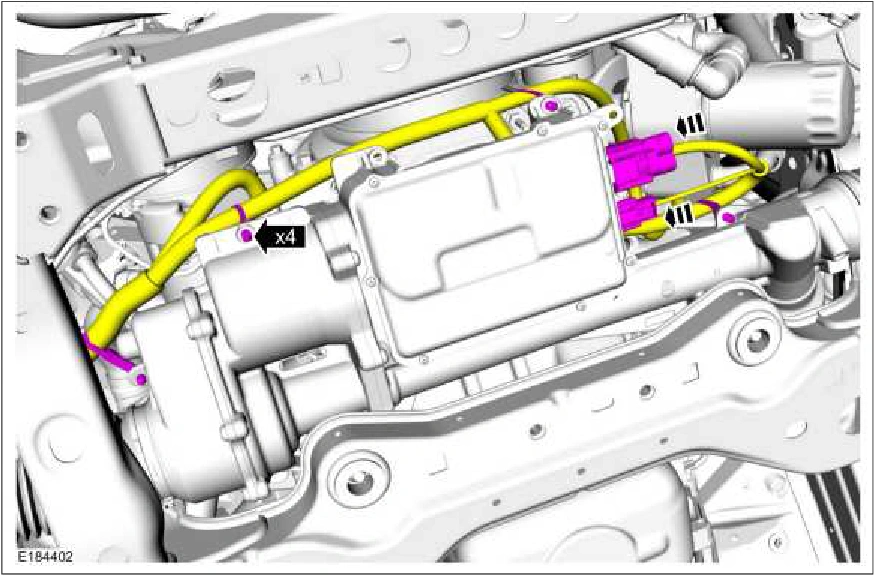

Steering Gear — original illustration 1, reference 3336Original colors & callouts · Select to enlarge

26. Position the EPAS gear wiring harness, clip the 4 wiring fasteners and connect the 2 electrical connectors.

Steering Gear — original illustration 2, reference 3336Original colors & callouts · Select to enlarge

27. NOTICE: Make sure steering gear is centered before connecting the steering column shaft.

Damage to the steering gear and/or clockspring may result.

Turn the steering gear input shaft completely to the right then completely to the left and return to the center position.

Source reference 3336
