2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,334 / 6,619HTML edition
← Chapter contentsProcedure contents
Steering Gear — original illustration 1, reference 3334Original colors & callouts · Select to enlarge

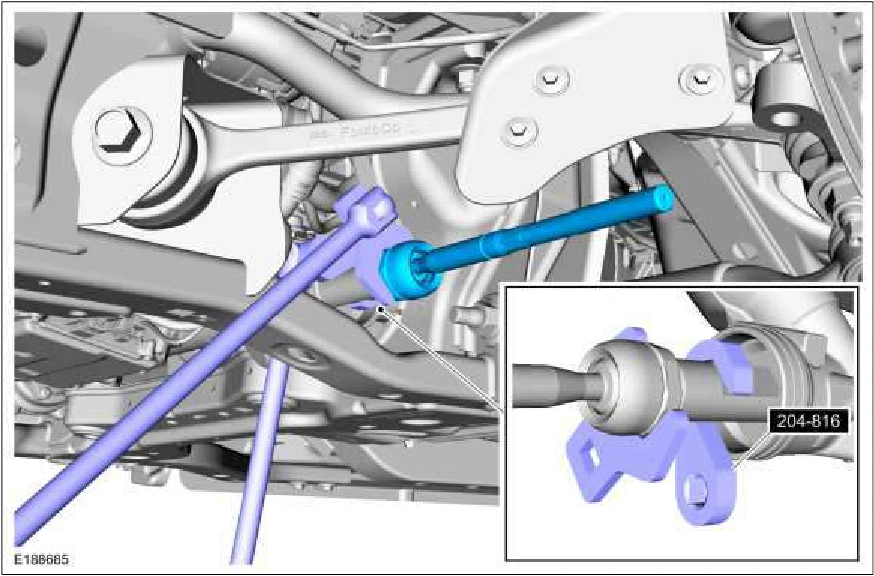

22. NOTICE: Install the steering stop using hand force only. Striking the steering stop may cause

damage to the stop.

NOTE: An audible click will be heard when the steering stop seats onto the inner tie rod. Make sure that the steering stop is fully seated and cannot be separated by hand.

On both sides. Install the steering stop onto the inner tie rod using hand force only.

Steering Gear — original illustration 2, reference 3334Original colors & callouts · Select to enlarge

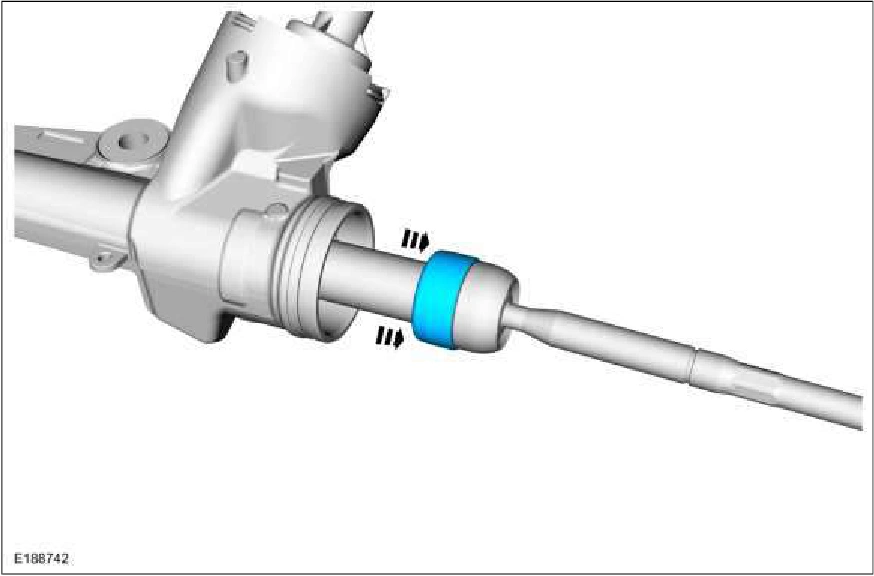

23. On both sides. Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod. Material : Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
