Steering Gear — 2016 workshop reference 3331

Steering Gear — original illustration 1, reference 3331Original colors & callouts · Select to enlarge

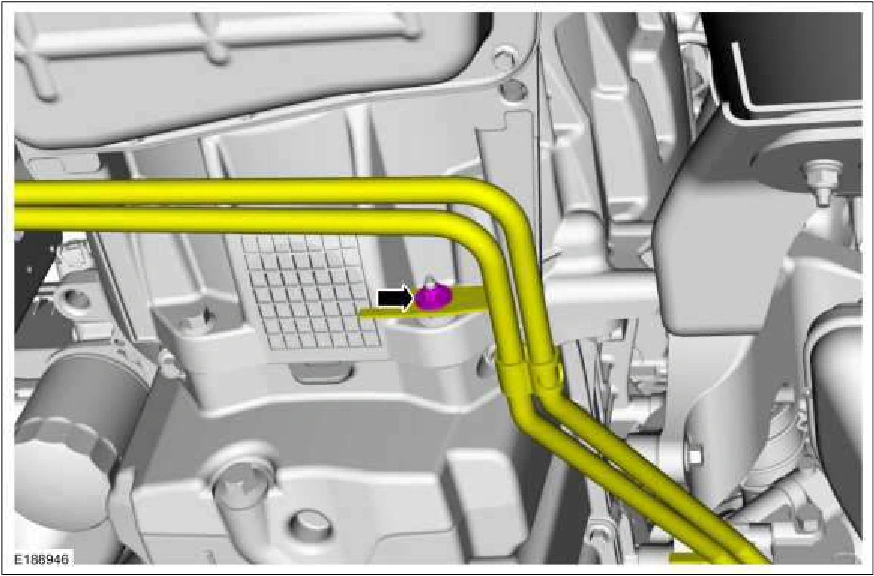

17. NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

Install the transmission fluid cooler tubes bracket-to-engine mount nut. Torque : 35 lb.ft (48 Nm)

Steering Gear — original illustration 2, reference 3331Original colors & callouts · Select to enlarge

18. Install the new engine oil filter. Material : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A) Torque : Stage 1: 71 lb.in (8 Nm) Stage 2: 180°
