Steering Gear — 2016 workshop reference 3330

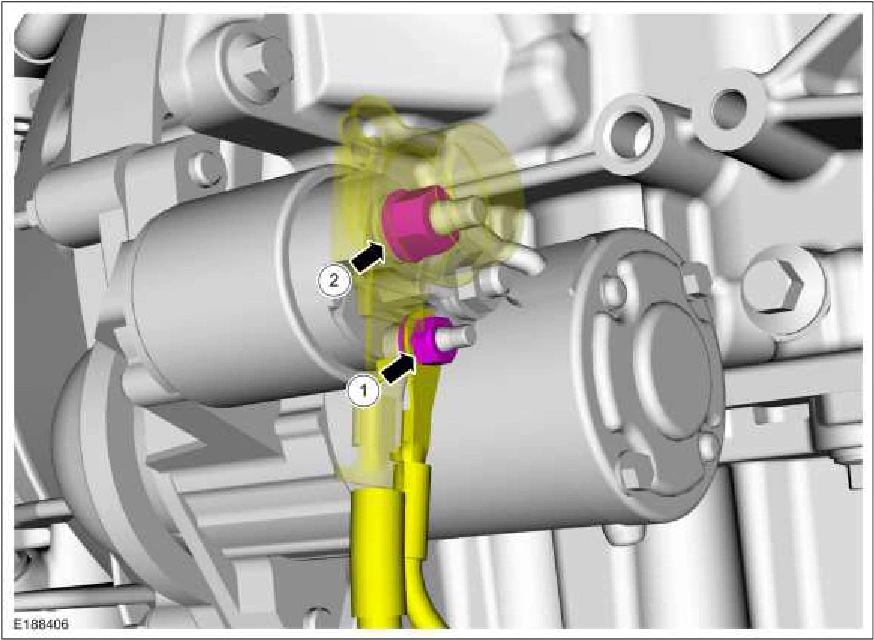

Steering Gear — original illustration 1, reference 3330Original colors & callouts · Select to enlarge

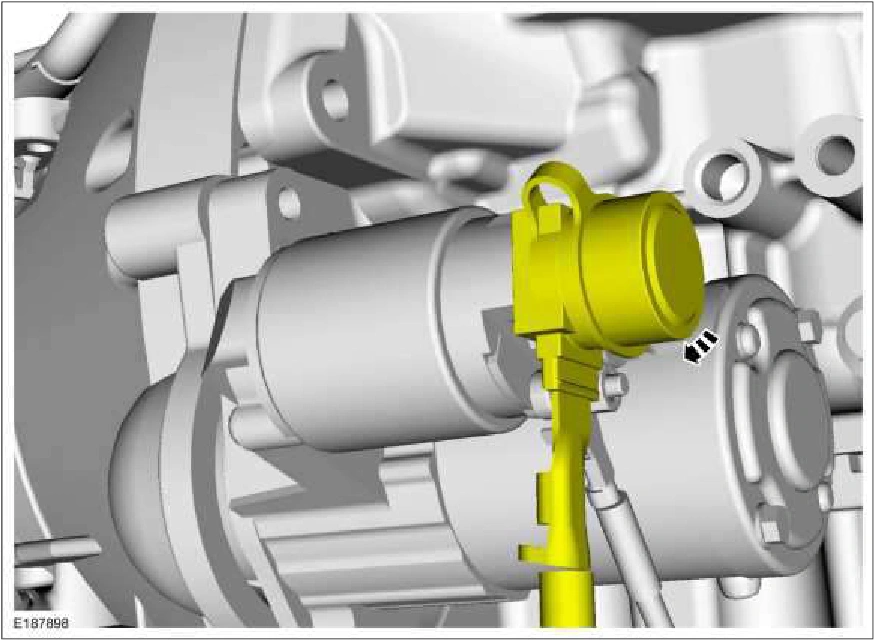

15. Close the starter motor solenoid battery cable cover.

Steering Gear — original illustration 2, reference 3330Original colors & callouts · Select to enlarge

2.3L EcoBoost (231kW/314PS)

16. NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

Position the tubes and install the transmission fluid cooler tubes bracket-to-transmission nut. Torque : 124 lb.in (14 Nm)

Source reference 3330
