2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,328 / 6,619HTML edition
← Chapter contentsProcedure contents
Steering Gear — original illustration 1, reference 3328Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

11. Position the bracket for the wire harness and install the nut on the front of the RH engine mount bracket stud bolt. Torque : 35 lb.ft (47.5 Nm)

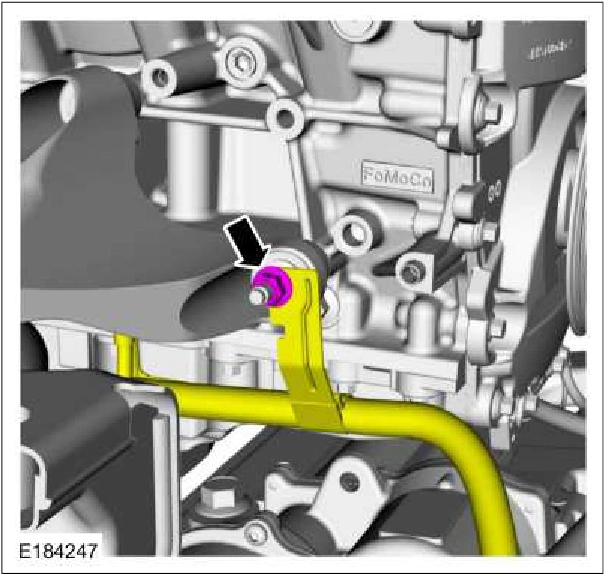

Steering Gear — original illustration 2, reference 3328Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

12. Position the brackets for the transmission cooling tubes and wire harness and install the nut on the front of the RH engine mount bracket stud bolt. Torque : 35 lb.ft (47.5 Nm)
