Steering Gear — 2016 workshop reference 3325

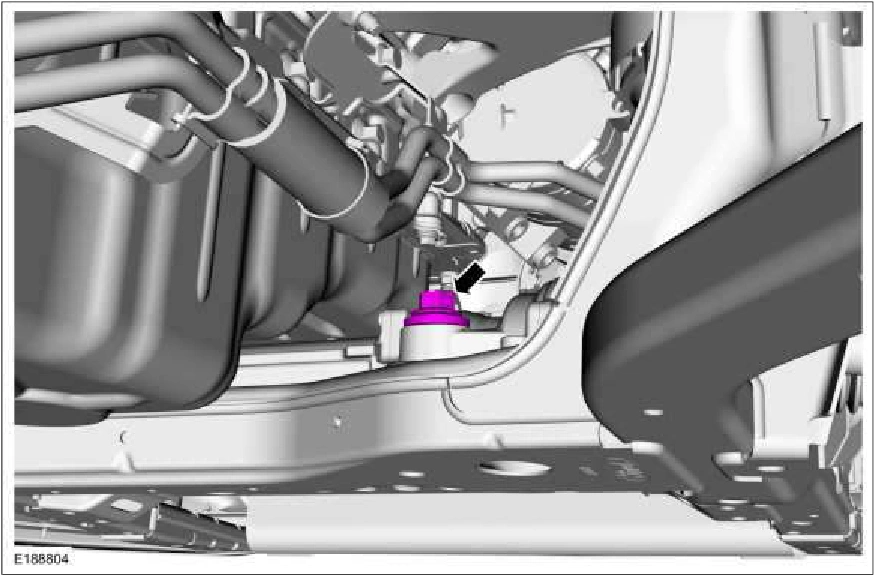

Install the new RH steering gear bolt.

Steering Gear — original illustration 1, reference 3325Original colors & callouts · Select to enlarge

5. NOTE: Only tighten the bolt finger tight at this stage.

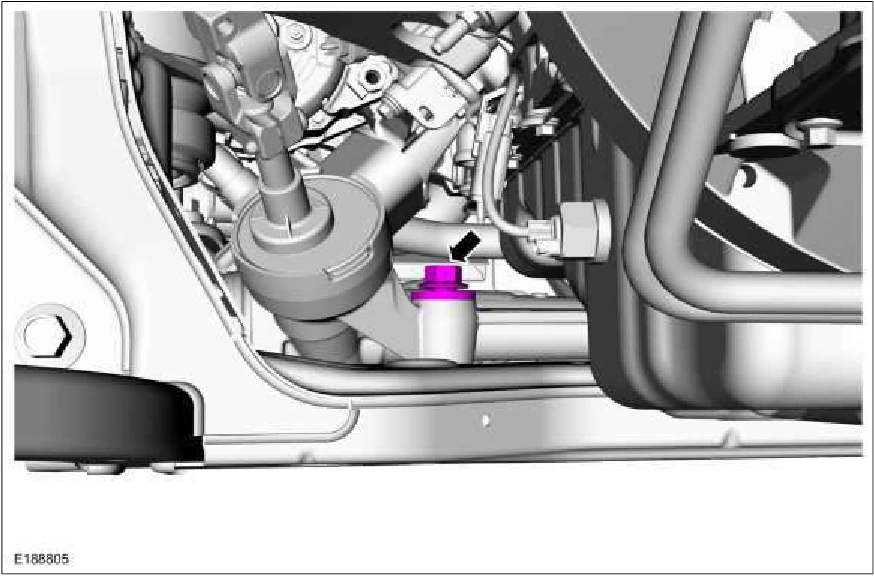

Install the new LH steering gear bolt.

Steering Gear — original illustration 2, reference 3325Original colors & callouts · Select to enlarge

6. On convertible vehicles. If equipped. Tighten the steering gear bracket bolt. Torque : 85 lb.ft (115 Nm)
