Steering Gear — 2016 workshop reference 3326

Steering Gear — original illustration 1, reference 3326Original colors & callouts · Select to enlarge

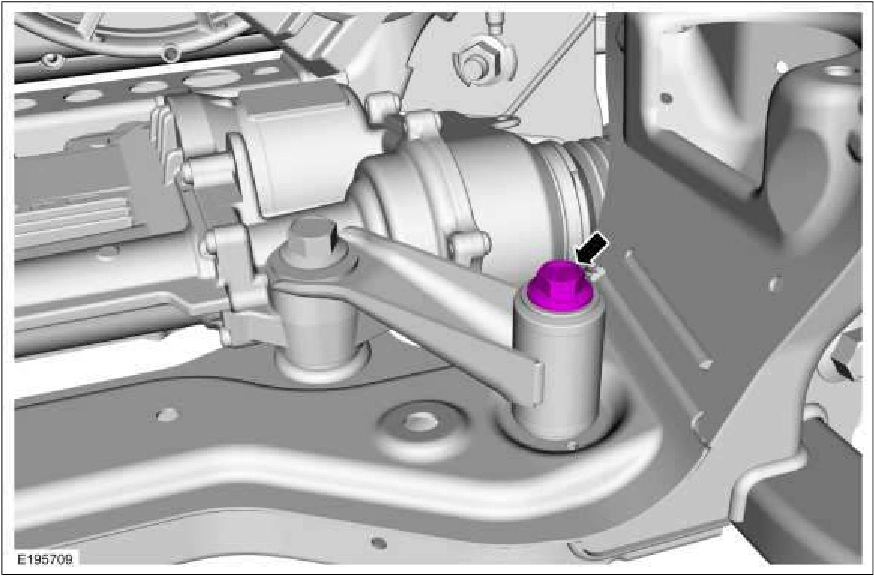

7. Tighten the new RH steering gear bolt. Torque : 148 lb.ft (200 Nm)

Steering Gear — original illustration 2, reference 3326Original colors & callouts · Select to enlarge

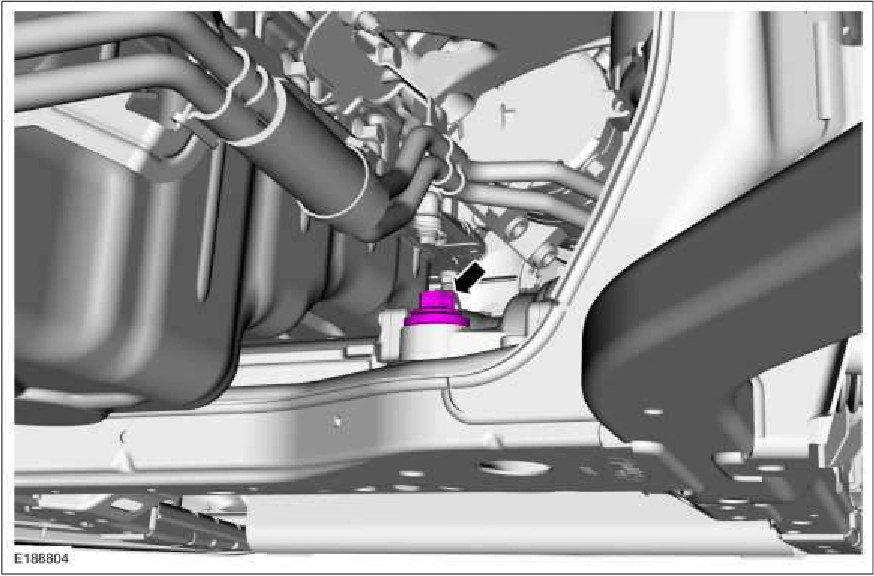

8. Tighten the new LH steering gear bolt. Torque : 148 lb.ft (200 Nm)

Source reference 3326
