Steering Gear — 2016 workshop reference 3323

Steering Gear — original illustration 1, reference 3323Original colors & callouts · Select to enlarge

Installation

All vehicles

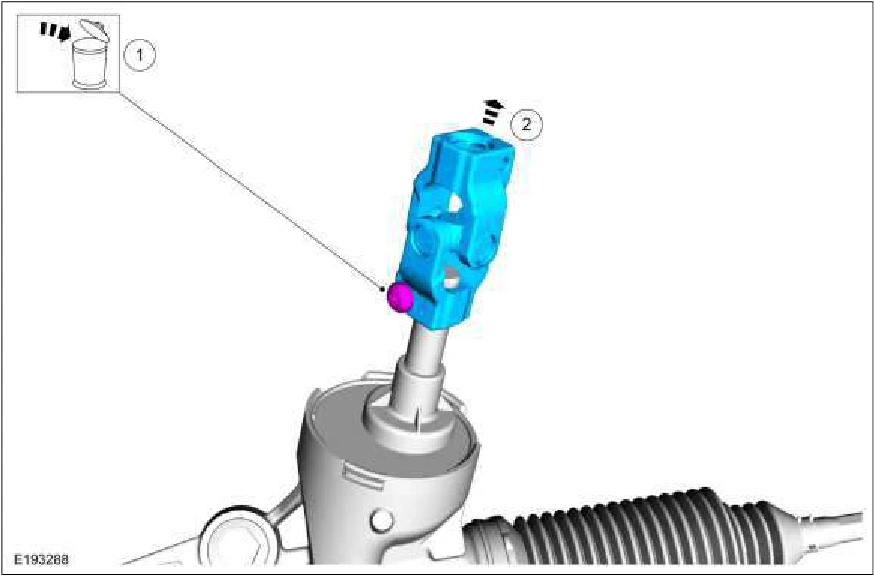

1. NOTE: This step is only necessary when installing a new component.

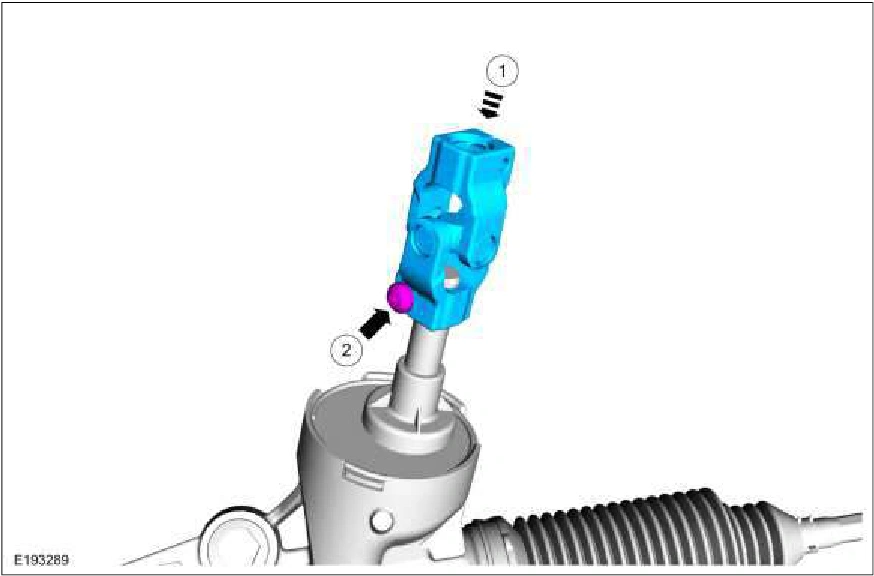

1. Install the steering coupler

2. Install the new steering coupler bolt. Torque : 22 lb.ft (30 Nm)

Steering Gear — original illustration 2, reference 3323Original colors & callouts · Select to enlarge

NOTE: The steering gear is shipped without the inner tie rods attached. The inner tie rods, bellows boots, bellows boot clamps and tie rod end jamb nuts are supplied in a kit and are to be installed after the steering gear is installed into the vehicle.
