Steering Gear — 2016 workshop reference 3320

Steering Gear — original illustration 1, reference 3320Original colors & callouts · Select to enlarge

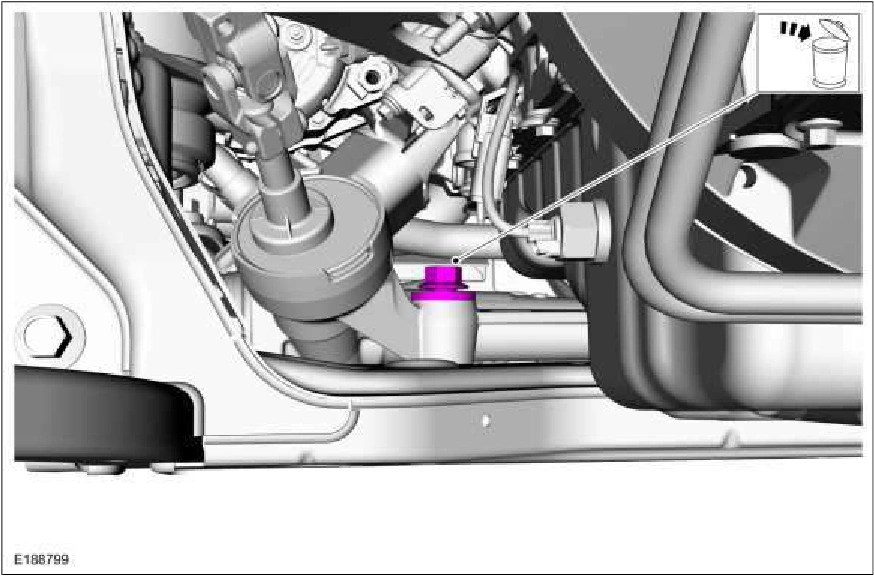

29. Remove and discard the RH steering gear bolt.

Steering Gear — original illustration 2, reference 3320Original colors & callouts · Select to enlarge

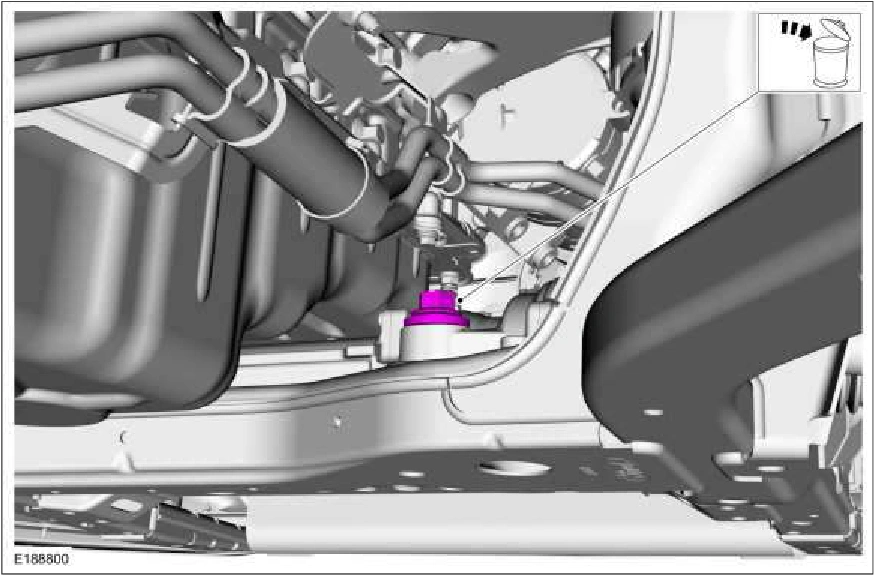

30. On convertible vehicles. If equipped. Remove the steering gear bracket bolt and the steering gear bracket.
