Steering Gear — 2016 workshop reference 3318

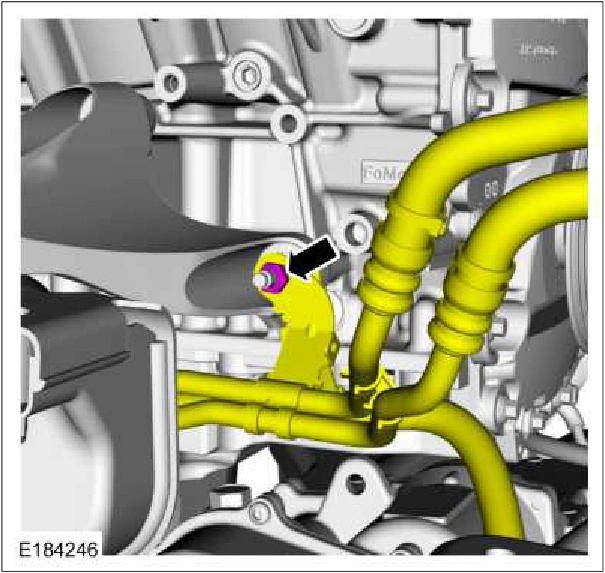

Steering Gear — original illustration 1, reference 3318Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

25. Remove the nut from the front of the RH engine mount bracket stud bolt and position the bracket for the wire harness aside.

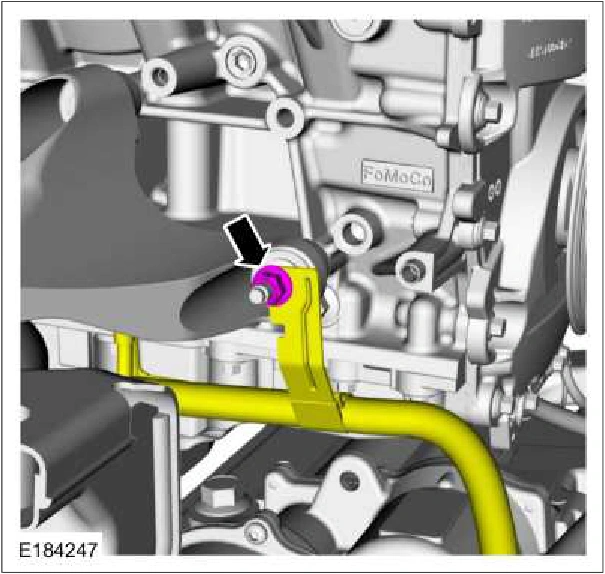

Steering Gear — original illustration 2, reference 3318Original colors & callouts · Select to enlarge

5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

26. Detach the wire harness retainers from the oil pan.

Source reference 3318
