Steering Gear — 2016 workshop reference 3319

Steering Gear — original illustration 1, reference 3319Original colors & callouts · Select to enlarge

5.2L 32V Ti-VCT

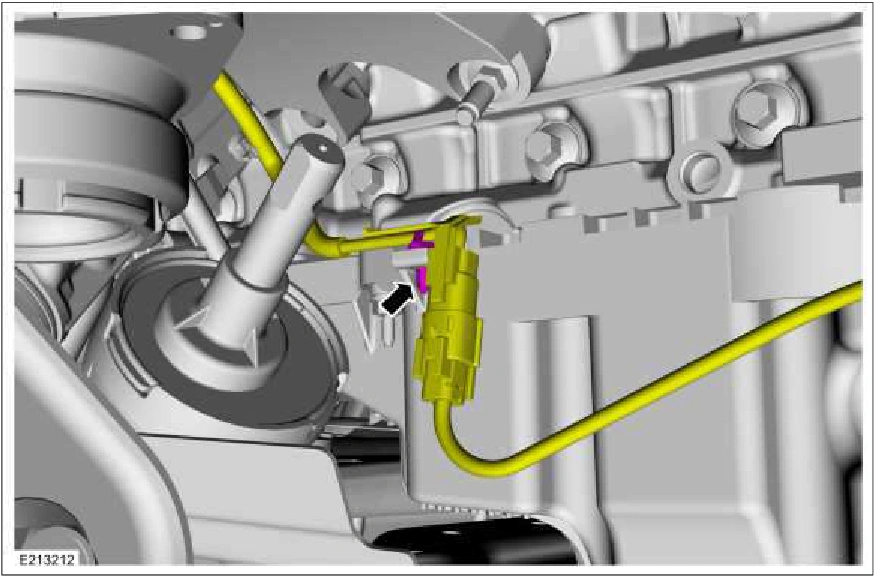

27. Detach the O2 sensor wire harness retainer from the oil pan and position the harness aside.

Steering Gear — original illustration 2, reference 3319Original colors & callouts · Select to enlarge

All vehicles

28. Remove and discard the LH steering gear bolt.

Source reference 3319
