Steering Gear — 2016 workshop reference 3316

Steering Gear — original illustration 1, reference 3316Original colors & callouts · Select to enlarge

3.7L Duratec (227kW/301PS)

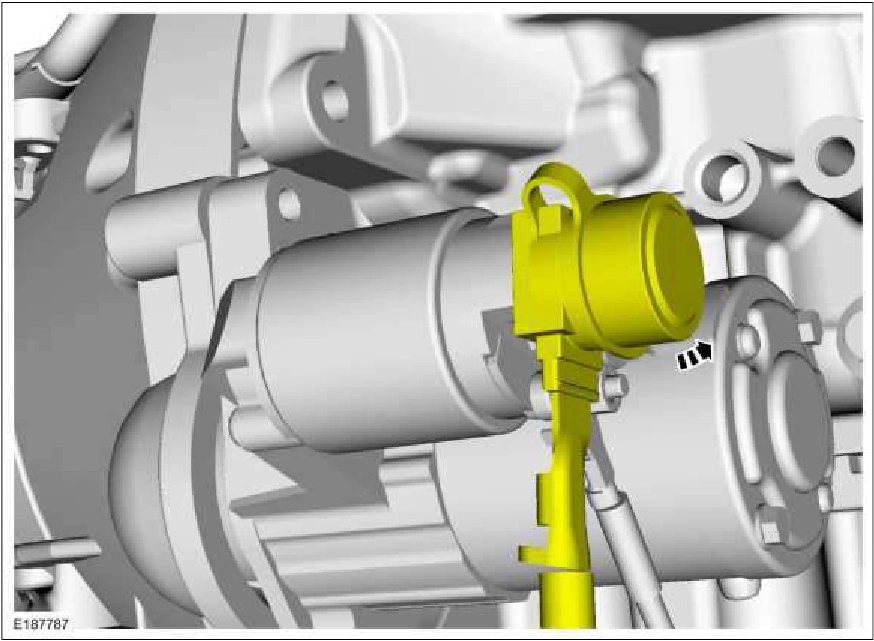

21. Open the starter motor solenoid battery cable cover.

Steering Gear — original illustration 2, reference 3316Original colors & callouts · Select to enlarge

Step 22

1. Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid

battery cable.

2. Remove the starter motor solenoid wire nut and then disconnect starter motor solenoid wire.
