2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,317 / 6,619HTML edition
← Chapter contentsProcedure contents
Steering Gear — original illustration 1, reference 3317Original colors & callouts · Select to enlarge

23. NOTE: Automatic transmission shown, manual transmission similar.

Remove the bolt and ground wire from the RH side of the engine.

Steering Gear — original illustration 2, reference 3317Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

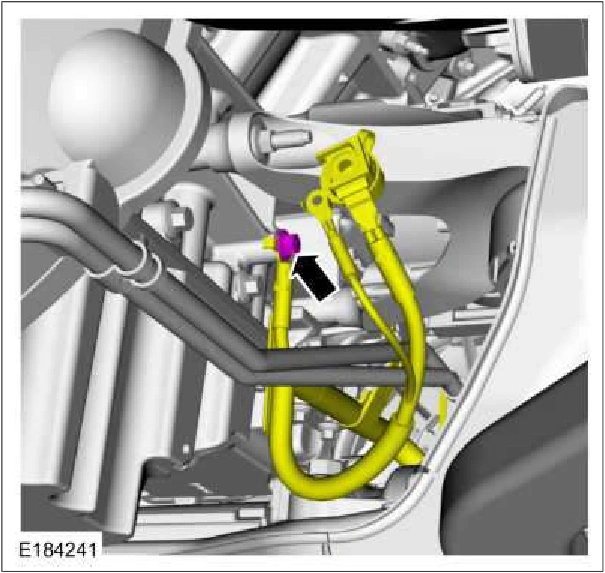

24. Remove the nut from the front of the RH engine mount bracket stud bolt and position the brackets for the transmission cooling tubes and wire harness aside.
