2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,315 / 6,619HTML edition
← Chapter contentsProcedure contents
Steering Gear — original illustration 1, reference 3315Original colors & callouts · Select to enlarge

19. NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

Remove the transmission fluid cooler tubes bracket-to-engine mount nut.

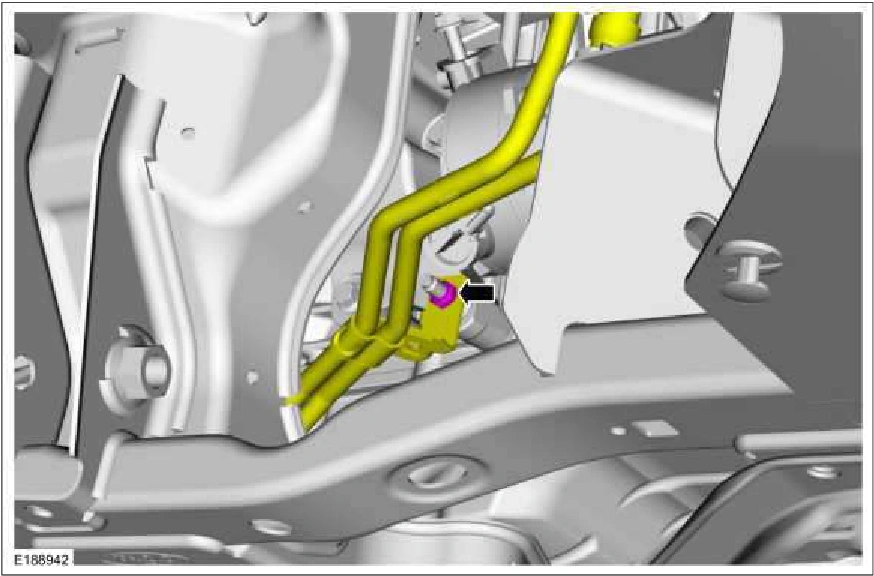

Steering Gear — original illustration 2, reference 3315Original colors & callouts · Select to enlarge

20. NOTE: If equipped with 2.3L EcoBoost and automatic transmission.

Remove the transmission fluid cooler tubes bracket-to-transmission nut and position the tubes aside.
