Steering Gear — 2016 workshop reference 3312

Steering Gear — original illustration 1, reference 3312Original colors & callouts · Select to enlarge

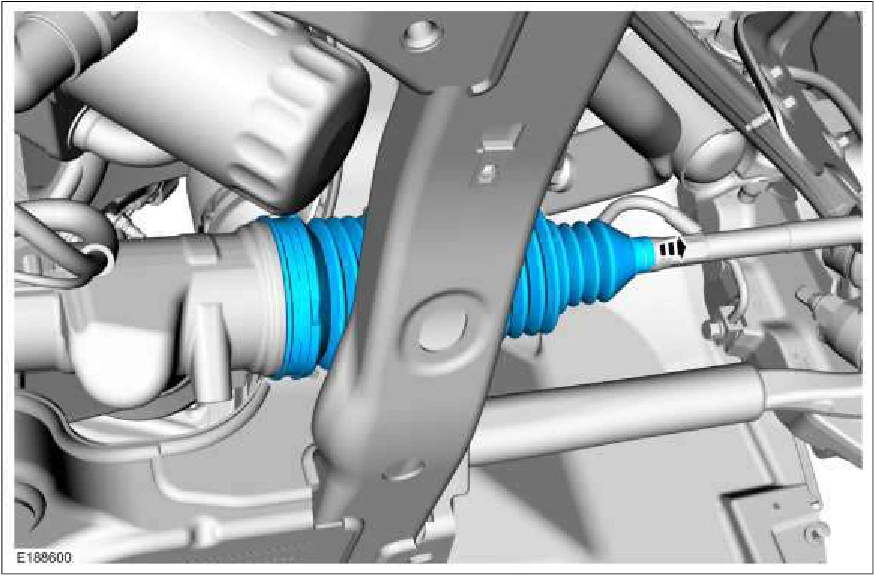

13. NOTE: Move the bellows boot enough to gain access to the inner tie rod nut.

On both sides. Position aside the bellows boot.

Steering Gear — original illustration 2, reference 3312Original colors & callouts · Select to enlarge

14. On both sides. Position aside the steering stop.
