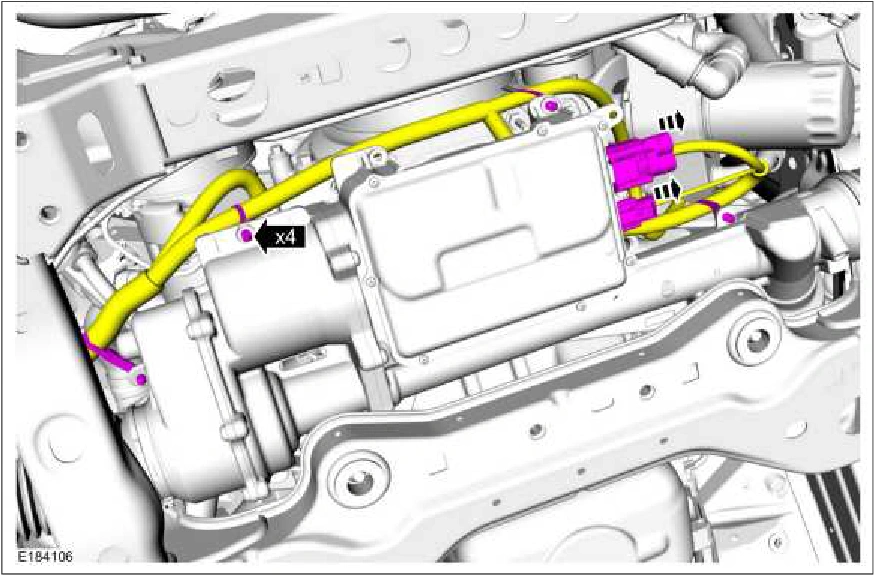

11. Disconnect the 2 EPAS gear electrical connectors and unclip the 4 wiring fasteners and position the wiring harness aside.
12. NOTICE: When servicing inner tie rods, install a new bellows boot and clamps. The boots and
clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight, the vacuum generated during turning will draw water and contamination into the gear, causing failure of the steering gear components. Zip ties must not be used as they do not provide an airtight seal.
NOTICE: The inner ball joint grease is not compatible with water contamination. Do not allow water to become trapped in the grease or degradation and failure of the joint may occur.
1. On both sides. Remove and discard the inner bellows boot clamp.
2. On both sides. Remove and discard the outer bellows boot clamp.
