Steering Gear — 2016 workshop reference 3308

Refer to: Tie Rod End (211-02 Power Steering, Removal and Installation).

5. NOTE: If equipped.

Remove the bolts and the underbody shield.

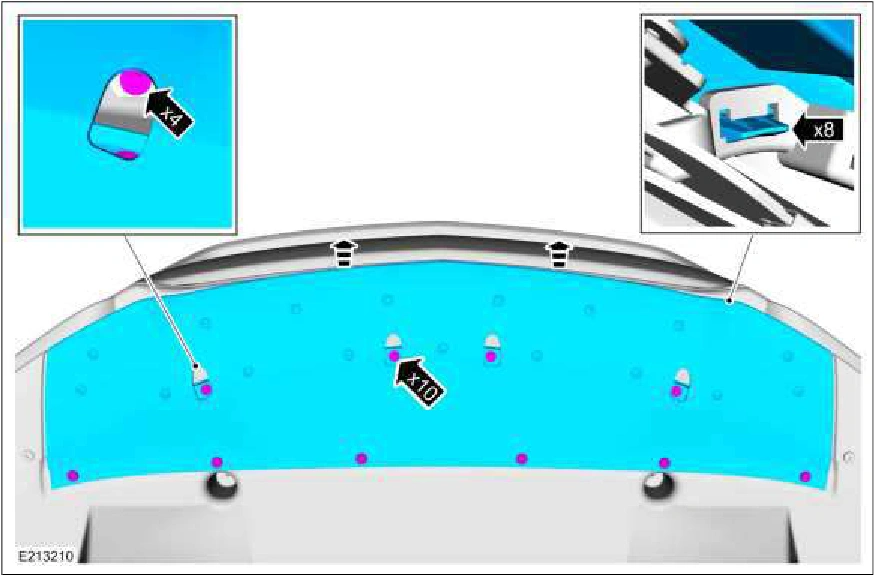

Steering Gear — original illustration 1, reference 3308Original colors & callouts · Select to enlarge

6. NOTE: If equipped.

Remove the bolts and the underbody shield.

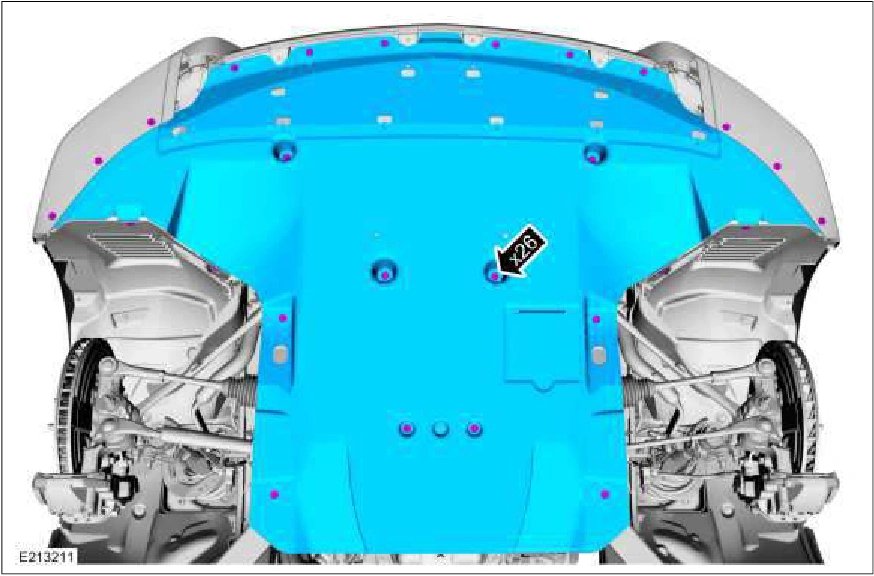

Steering Gear — original illustration 2, reference 3308Original colors & callouts · Select to enlarge

7. NOTE: If equipped.

Remove the bolts and the support brackets.

Source reference 3308
