Steering Gear — 2016 workshop reference 3309

Steering Gear — original illustration 1, reference 3309Original colors & callouts · Select to enlarge

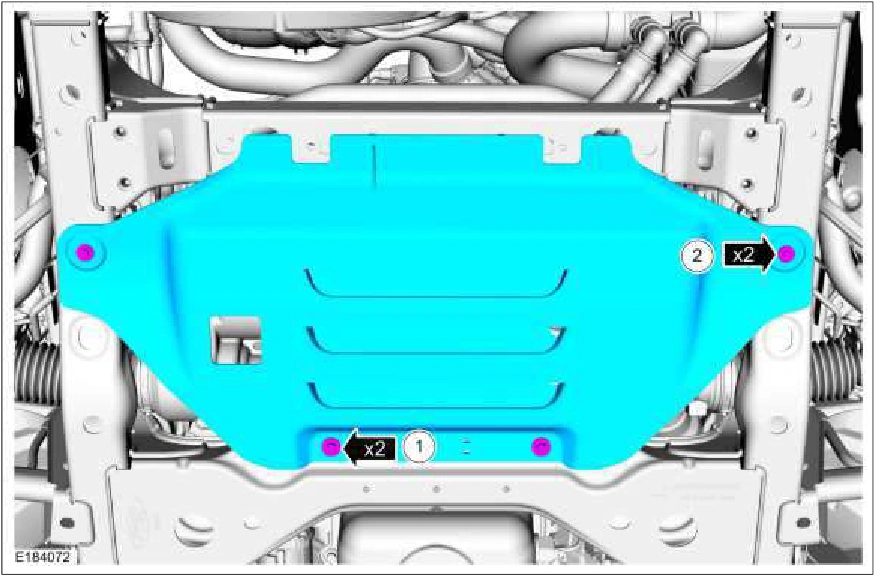

8. NOTE: If equipped.

1. Remove the 2 rearward underbody shield bolts.

2. Remove the 2 remaining underbody shield bolts and remove the underbody shield.

Steering Gear — original illustration 2, reference 3309Original colors & callouts · Select to enlarge

Step 9

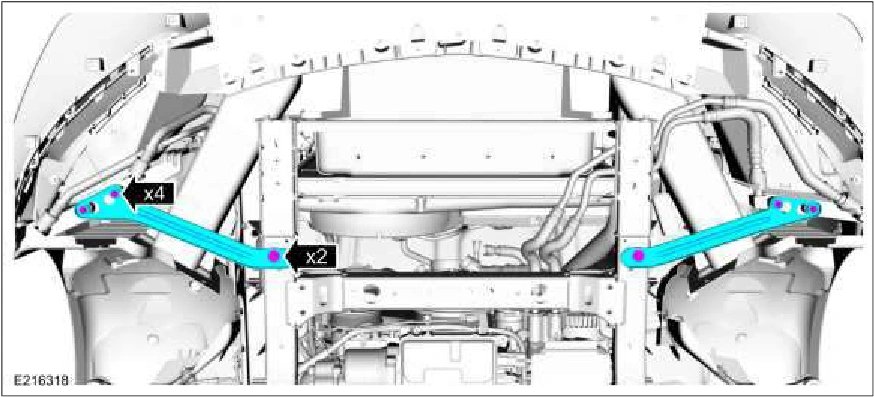

1. NOTE: If equipped.

Remove the underbody shield bolt.

2. NOTE: It is not necessary to separate the underbody shield from the V-brace.

Remove the 6 V-brace bolts and remove the V-brace and underbody shield.

Source reference 3309
