Steering Gear — 2016 workshop reference 3314

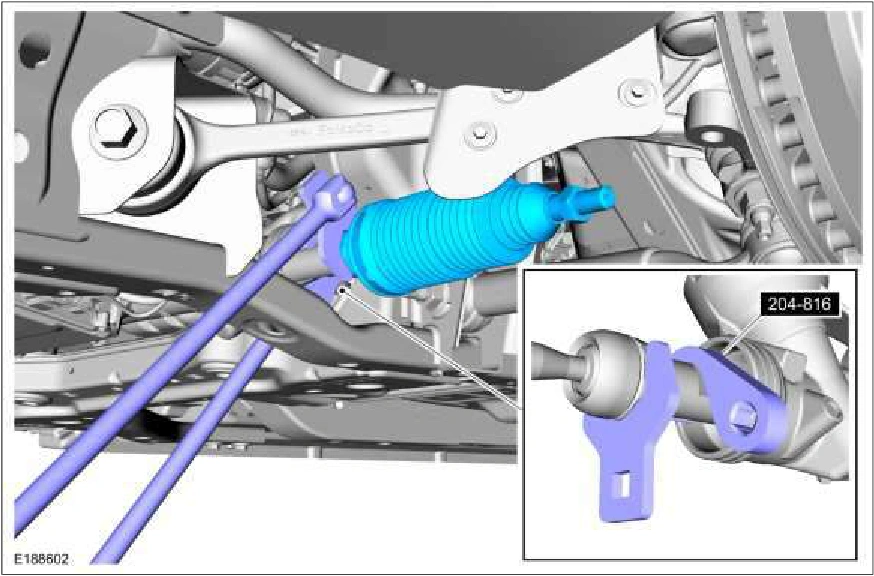

On both sides. Using the special tool to hold the rack and an appropriate size crows foot wrench or open end wrench, remove and discard the inner tie rod. Use Special Service Tool: 204-816 Rack Holding Tool.

Steering Gear — original illustration 1, reference 3314Original colors & callouts · Select to enlarge

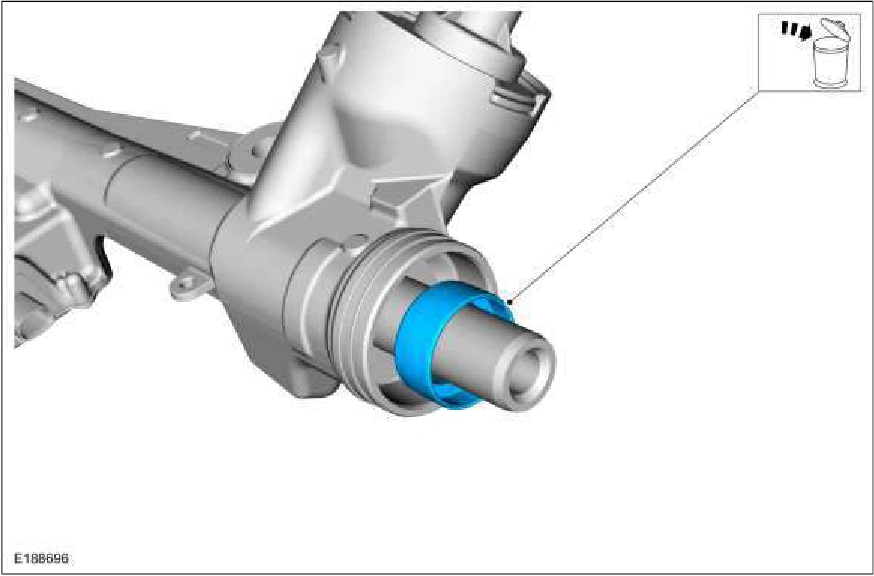

17. On both sides. Remove and discard the steering stop.

Steering Gear — original illustration 2, reference 3314Original colors & callouts · Select to enlarge

2.3L EcoBoost (231kW/314PS)

18. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
