2016 workshop · Steering System

Steering Gear

211-02 Power Steering

2016 MustangReference 3,313 / 6,619HTML edition
← Chapter contentsProcedure contents
Steering Gear — original illustration 1, reference 3313Original colors & callouts · Select to enlarge

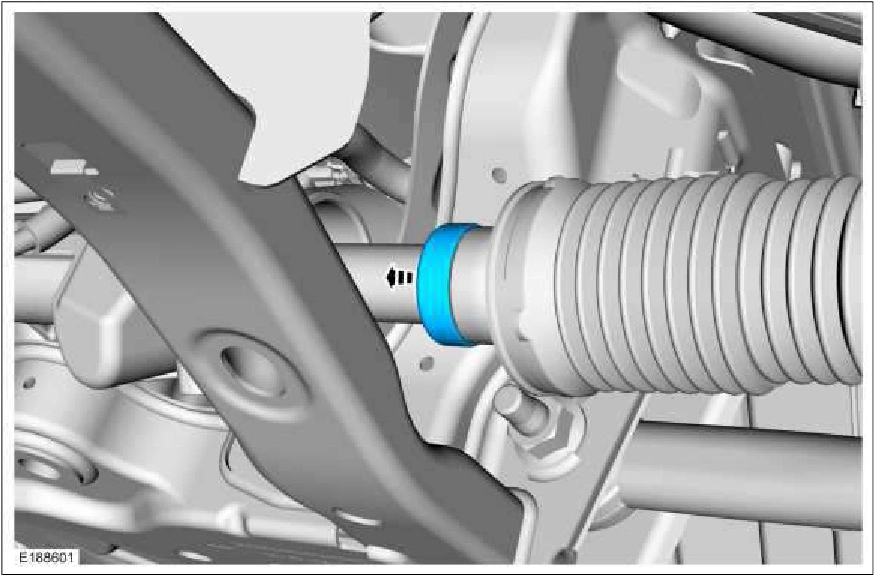

15. NOTE: The rack must be positioned completely to the LH side to gain clearance for tools.

Position the steering rack completely to the LH side.

Steering Gear — original illustration 2, reference 3313Original colors & callouts · Select to enlarge

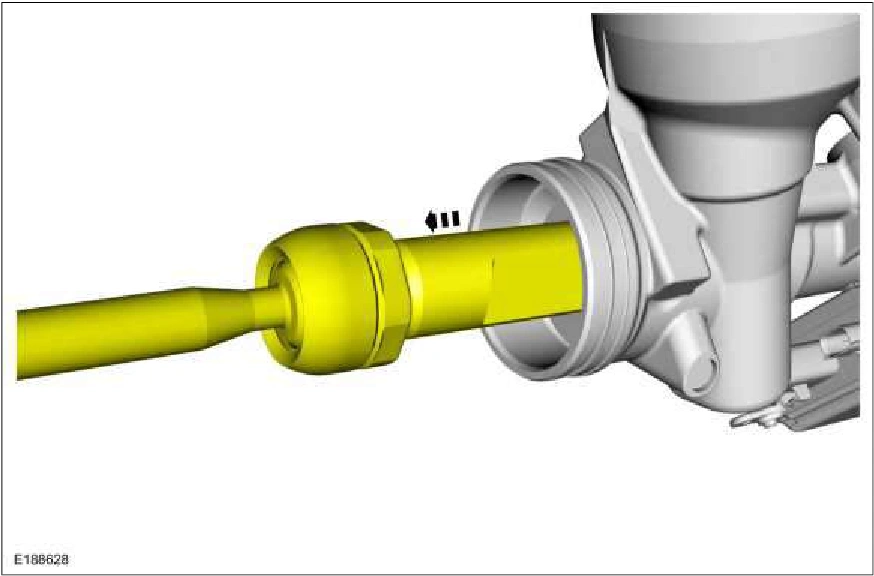

16. NOTICE: Hold the steering gear rack while loosening the inner tie rod. Failure to hold the rack

securely could result in steering gear damage.

NOTICE: The steering gear rack holding tool must be reversed to remove the RH tie rod or damage to the rack and/or special tool may occur.

NOTE: The holding tool can only be used on the LH side of the steering gear.

NOTE: LH side shown RH side similar.

Source reference 3313
