2. NOTE: It will be necessary to raise the LH side of the steering gear and slide it to the LH side of the vehicle, then rotate and raise the RH side of the steering gear in order to install it into the vehicle.

Install the steering gear.

1. Lift the LH side of the steering gear and slide it to the LH side of the vehicle.

2. Raise the RH side of the steering gear and slide it to the RH side of the vehicle.

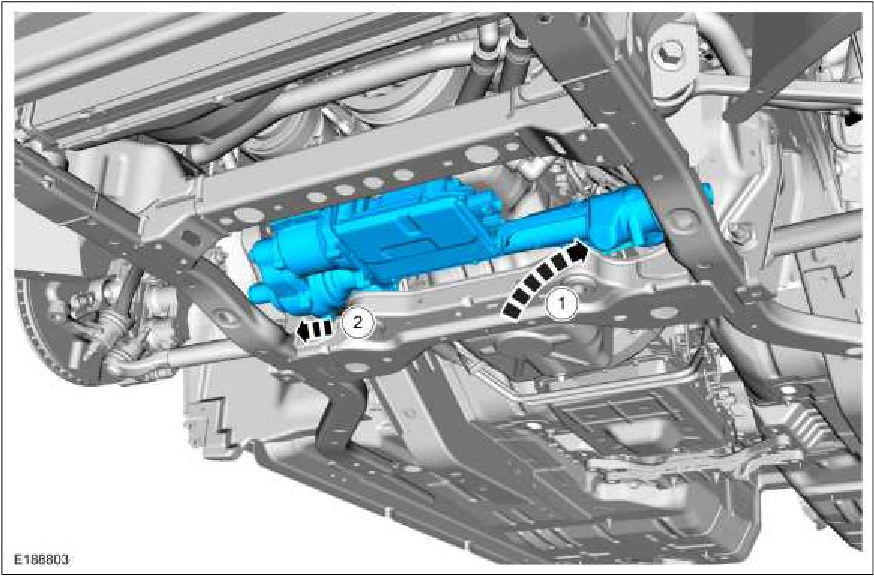

Steering Gear — original illustration 1, reference 3324Original colors & callouts · Select to enlarge

3. NOTE: Only tighten the bolt finger tight at this stage.

On convertible vehicles. If equipped. Install the steering gear bracket and the steering gear bracket bolt.

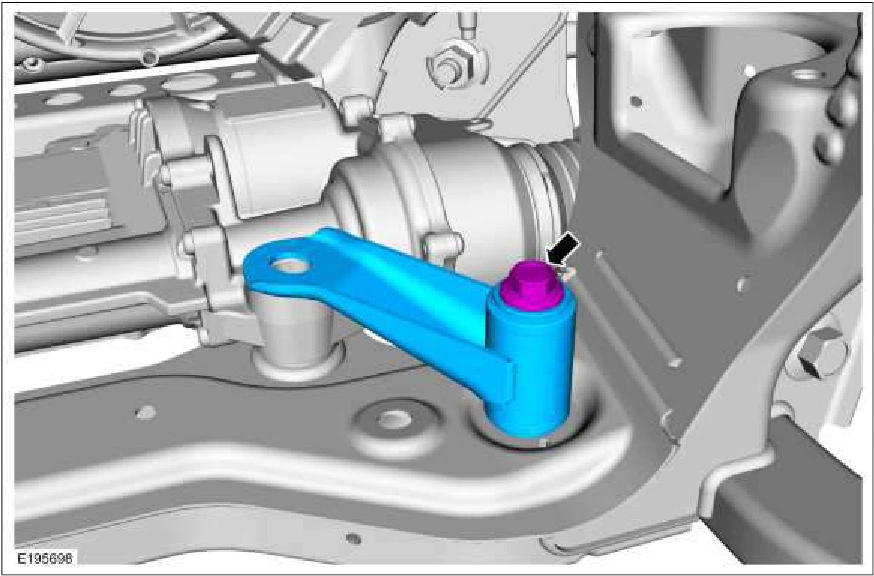

Steering Gear — original illustration 2, reference 3324Original colors & callouts · Select to enlarge

4. NOTE: Only tighten the bolt finger tight at this stage.
