Steering Gear — 2016 workshop reference 3327

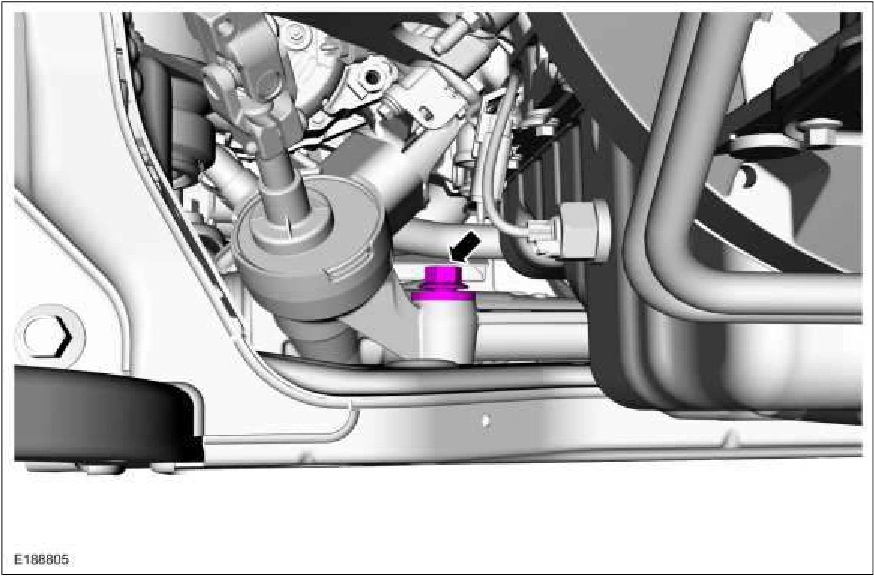

Steering Gear — original illustration 1, reference 3327Original colors & callouts · Select to enlarge

5.2L 32V Ti-VCT

9. Position the O2 sensor wire harness and attach the harness retainer to the oil pan.

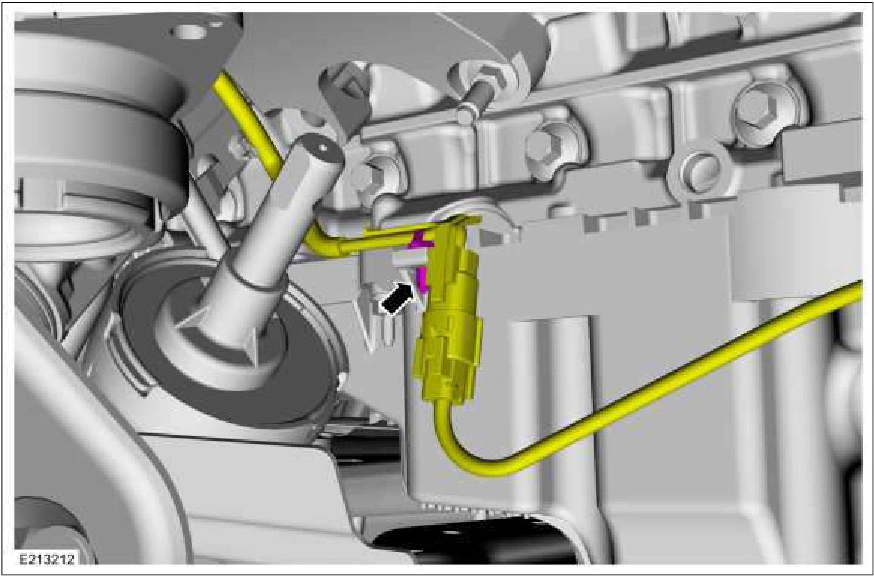

Steering Gear — original illustration 2, reference 3327Original colors & callouts · Select to enlarge

5.0L Ti-VCT V8 (308kW/418PS)

10. Attach the wire harness retainers to the oil pan.
