3.7L Duratec (227kW/301PS)

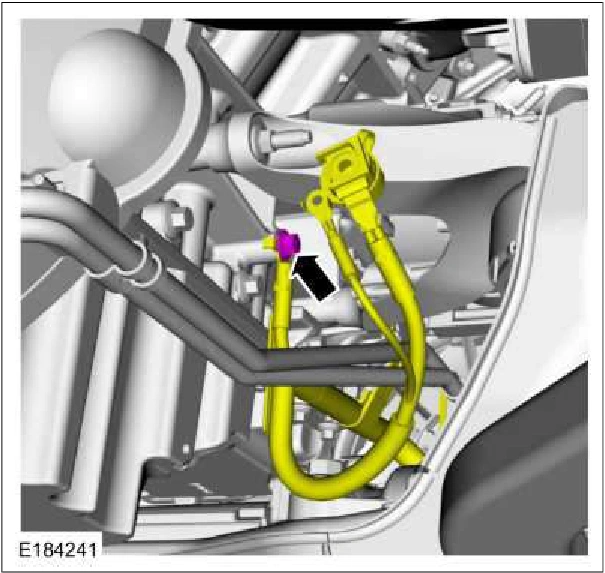

13. NOTE: Automatic transmission shown, manual transmission similar.

Position the ground wire and install the bolt to the RH side of the engine. Torque : 35 lb.ft (47.5 Nm)

Steering Gear — original illustration 2, reference 3329Original colors & callouts · Select to enlarge

Step 14

1. Connect starter motor solenoid wire and install the starter motor solenoid wire nut.

Torque : 53 lb.in (6 Nm)

2. Connect the starter motor solenoid battery cable and install the starter motor solenoid battery cable nut. Torque : 106 lb.in (12 Nm)
