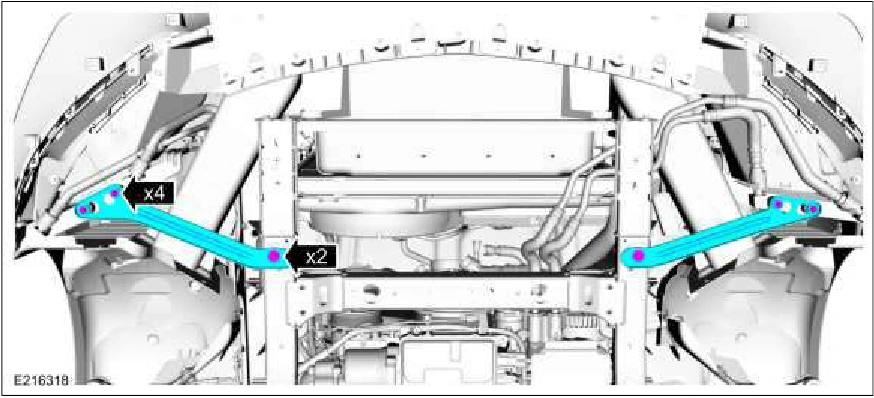

Steering Gear — original illustration 1, reference 3339Original colors & callouts · Select to enlarge

32. NOTE: If equipped.

Install the 2 support brackets and the bolts. Torque : Bracket to subframe bolts.: 22 lb.ft (30 Nm) Bracket to cooler bolts.: 93 lb.in (10.5 Nm)

Steering Gear — original illustration 2, reference 3339Original colors & callouts · Select to enlarge

33. NOTE: If equipped.

Position the underbody shield and install the bolts.
