damage to the stop.

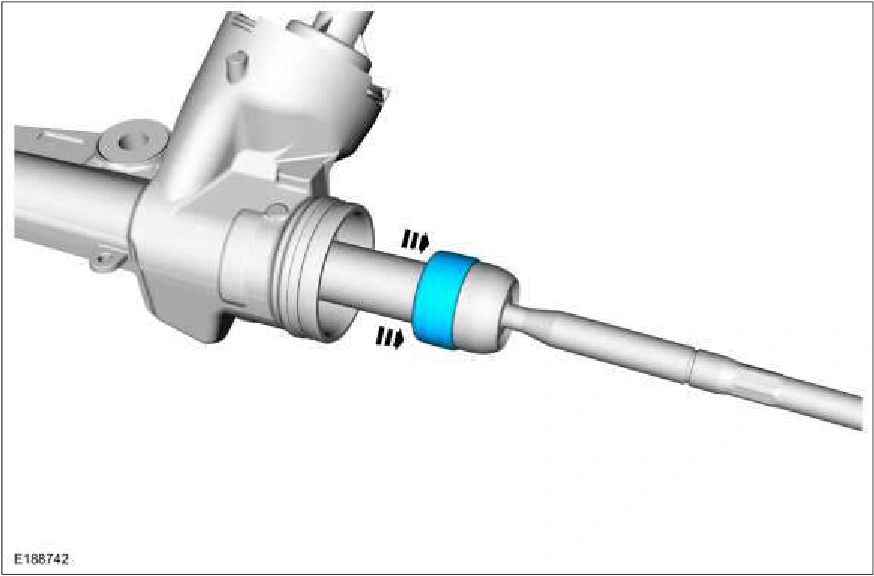

NOTE: An audible click will be heard when the steering stop seats onto the inner tie rod. Make sure that the steering stop is fully seated and cannot be separated by hand.

Install the steering stop onto the inner tie rod using hand force only.

Tie Rod — original illustration 1, reference 3350Original colors & callouts · Select to enlarge

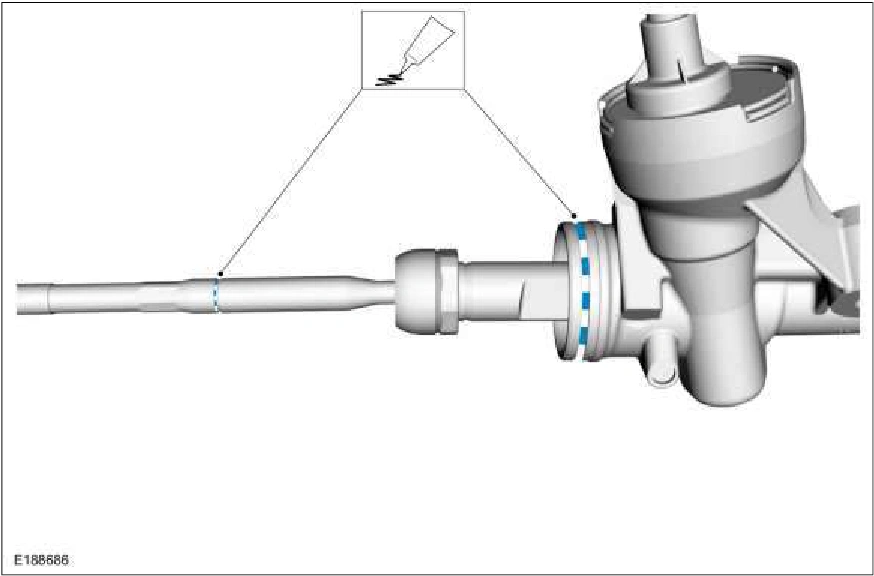

4. Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod. Material : Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Tie Rod — original illustration 2, reference 3350Original colors & callouts · Select to enlarge

5. NOTE: LH side shown, RH side similar.

1. NOTE: Make sure the steering gear bellows boot is positioned correctly over the steering gear
