Steering Column — 2016 workshop reference 3361

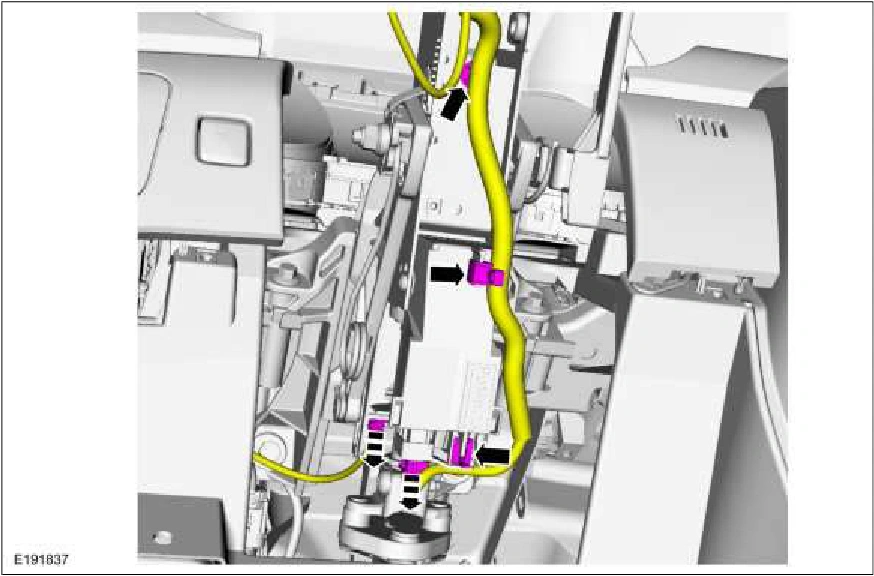

Steering Column — original illustration 1, reference 3361Original colors & callouts · Select to enlarge

5. NOTICE: Do not reuse steering column shaft bolts. This may result in fastener failure and steering

column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Remove and discard the bolt and pull apart the upper steering column shaft from the steering column. Torque : 22 lb.ft (30 Nm)

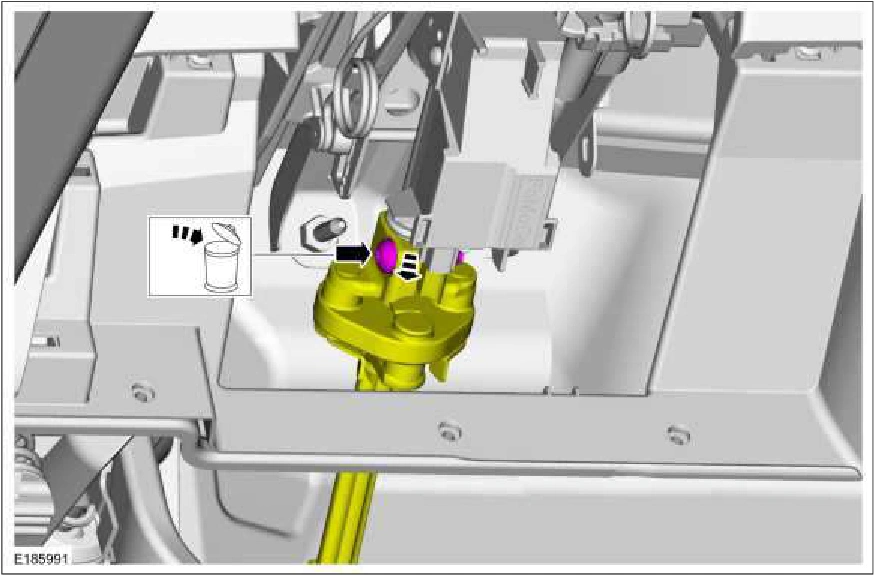

Steering Column — original illustration 2, reference 3361Original colors & callouts · Select to enlarge

6. NOTE: The front and rear fasteners are not the same. DO NOT install in place of one another.

Remove the steering column.

1. Remove and discard the bolts. Torque : 18 lb.ft (25 Nm)

2. Remove and discard the bolts. Remove the steering column.
