Steering Column Lower Shaft — 2016 workshop reference 3366

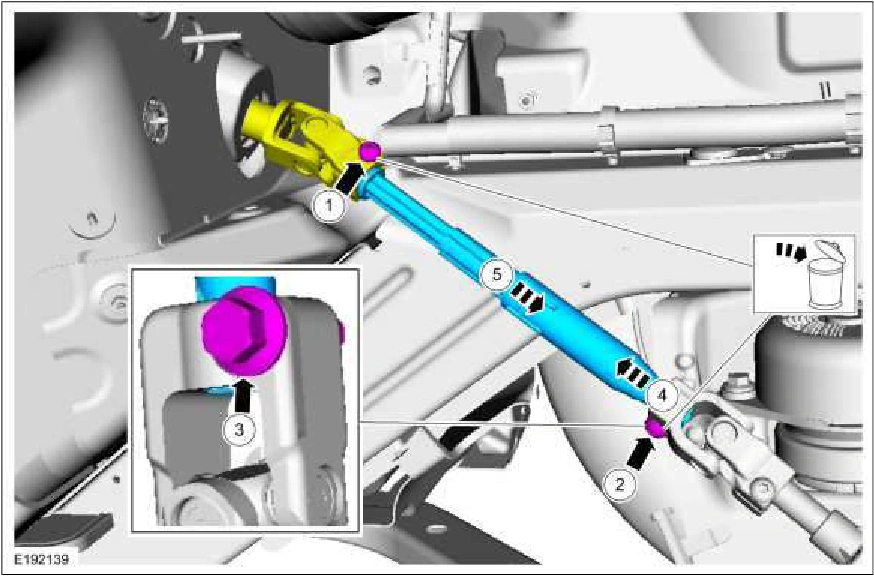

Steering Column Lower Shaft — original illustration 1, reference 3366Original colors & callouts · Select to enlarge

Installation

NOTICE: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

NOTICE: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

1. To install, reverse the removal procedure.

2. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check (211-04 Steering Column, General Procedures).
