Steering Column Upper Shaft — 2016 workshop reference 3368

Steering Column Upper Shaft — original illustration 1, reference 3368Original colors & callouts · Select to enlarge

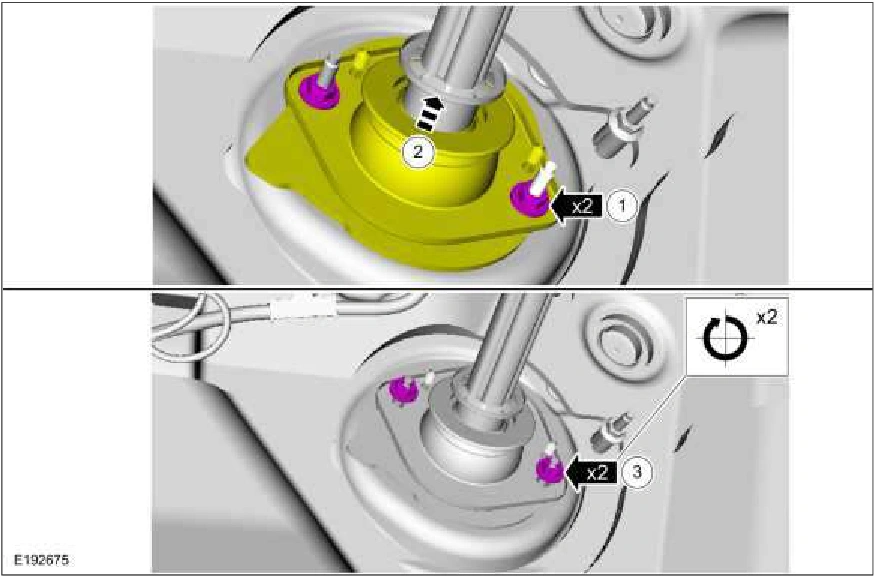

4. NOTICE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets

from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.

Loosen the dash seal.

1. Remove the nuts. Torque : 80 lb.in (9 Nm)

2. Loosen the dash seal.

3. Hand start the nuts.

Steering Column Upper Shaft — original illustration 2, reference 3368Original colors & callouts · Select to enlarge

5. NOTICE: Do not reuse steering column shaft bolts. This may result in fastener failure and steering

column shaft detachment or loss of steering control. Failure to follow this instruction may result in
