Steering Column Upper Shaft — 2016 workshop reference 3370

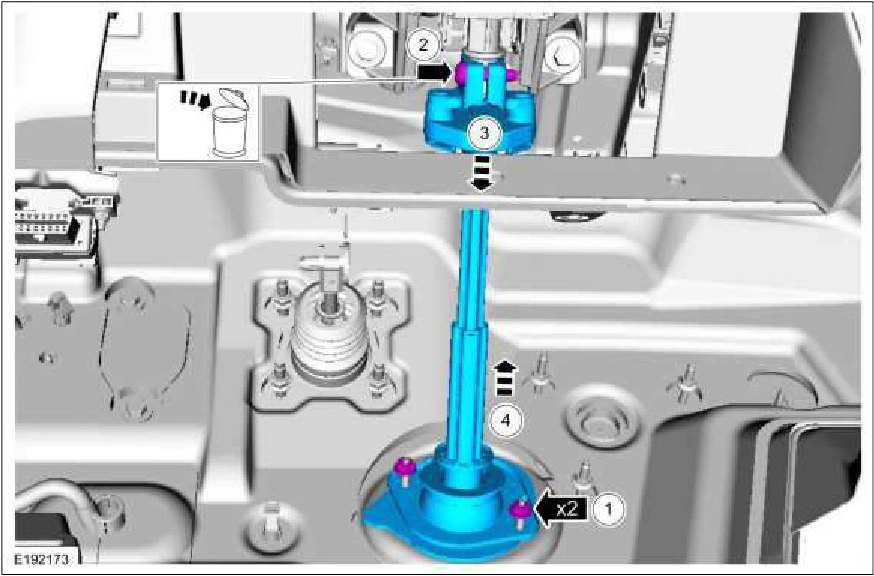

Steering Column Upper Shaft — original illustration 1, reference 3370Original colors & callouts · Select to enlarge

Installation

1. Install the steering column upper shaft.

1. NOTICE: Do not reuse steering column shaft bolts. This may result in fastener failure and

steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Connect the upper shaft to the steering column.

2. Install the bolt. Torque : 22 lb.ft (30 Nm)

3. Seat the dash seal.

4. Hand start the nuts.

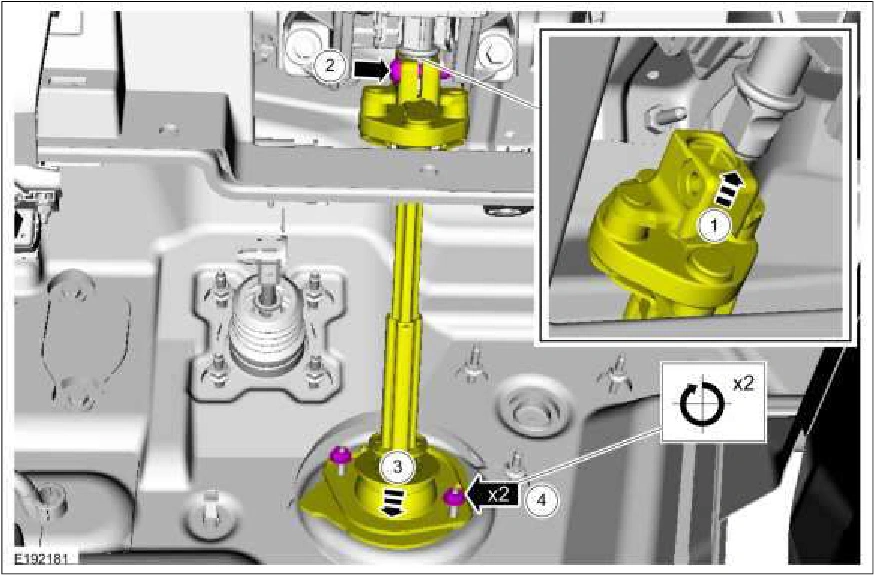

Steering Column Upper Shaft — original illustration 2, reference 3370Original colors & callouts · Select to enlarge
