211-04 Steering Column 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Steering Wheel

Base Part Number: 3600

Removal

NOTICE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD shown, RHD similar.

1. Remove the driver airbag module. Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

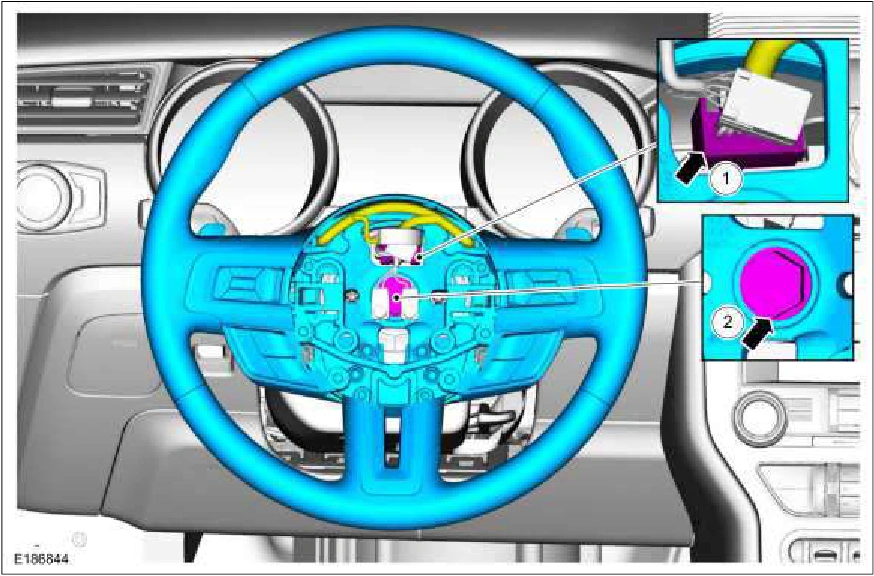

Step 2

1. Disconnect the steering wheel switches electrical connector.

2. Remove the steering wheel bolt and the steering wheel. Torque : 35 lb.ft (47.5 Nm)

Steering Wheel — original illustration 1, reference 3372Original colors & callouts · Select to enlarge

3. Tape the clockspring rotor to the outer housing to keep it from rotating.
