Steering Column Upper Shaft — 2016 workshop reference 3371

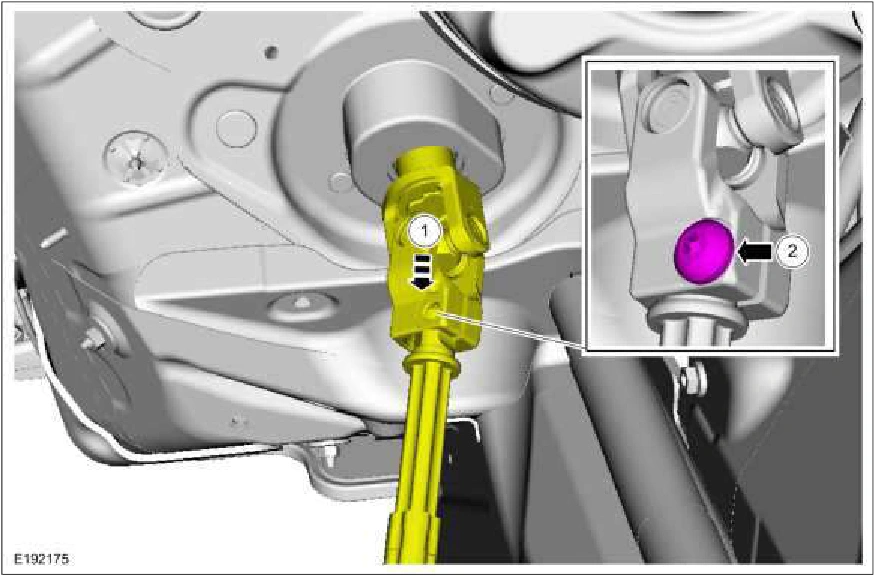

2. Connect the upper shaft to the lower shaft and install the bolt. Torque : 22 lb.ft (30 Nm)

Steering Column Upper Shaft — original illustration 1, reference 3371Original colors & callouts · Select to enlarge

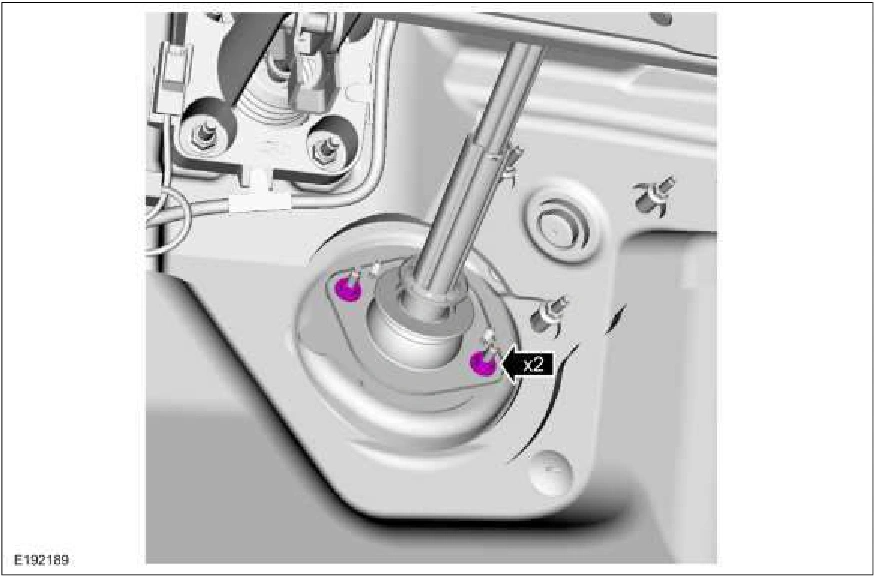

3. Tighten the dash seal nuts. Torque : 80 lb.in (9 Nm)

Steering Column Upper Shaft — original illustration 2, reference 3371Original colors & callouts · Select to enlarge

4. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check (211-04 Steering Column, General Procedures).
