Steering Wheel and Column Electrical Components

211-05 Steering Wheel and Column Electrical Components

2016 MustangReference 3,394 / 6,619HTML edition
← Chapter contentsProcedure contents

Positive Lead

Measurement /

Action

Negative Lead

Steering column lock module relay, cavity 3

Steering Wheel and Column Electrical Components — original illustration 1, reference 3394Original colors & callouts · Select to enlarge

Steering column lock module relay, cavity 2

Steering Wheel and Column Electrical Components — original illustration 2, reference 3394Original colors & callouts · Select to enlarge

Does the test lamp illuminate?

Yes

GO to D4

No

REPAIR the circuit.

D4 CHECK THE STEERING COLUMN LOCK MODULE RELAY COIL CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

Ignition OFF. Disconnect BCM C2280F. Ignition ON. Measure:

Positive Lead Measurement / Action Negative Lead Ground Steering column lock module relay, cavity 1

Original table alignment retained · Scroll horizontally if needed

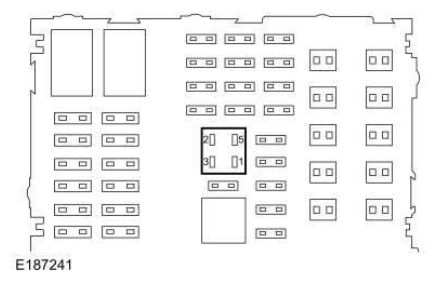

Steering Wheel and Column Electrical Components — original illustration 3, reference 3394Original colors & callouts · Select to enlarge

Is any voltage present?

Yes

REPAIR the circuit.

No

GO to D5

D5 CHECK THE STEERING COLUMN LOCK MODULE RELAY COIL CONTROL CIRCUIT FOR A SHORT TO GROUND

Ignition OFF. Measure:

Positive Lead

Measurement / Action

Negative Lead
