Steering Wheel and Column Electrical Components

211-05 Steering Wheel and Column Electrical Components

2016 MustangReference 3,397 / 6,619HTML edition
← Chapter contentsProcedure contents
Positive Lead Measurement / Action Negative Lead C2280G-8 Steering column lock module relay, cavity 5

Original table alignment retained · Scroll horizontally if needed

Steering Wheel and Column Electrical Components — original illustration 1, reference 3397Original colors & callouts · Select to enlarge

Measure:

Positive Lead Measurement / Action Negative Lead C2434-2 Steering column lock module relay, cavity 5

Original table alignment retained · Scroll horizontally if needed

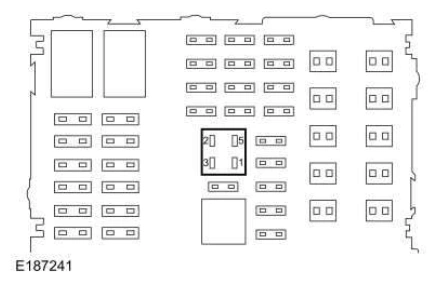

Steering Wheel and Column Electrical Components — original illustration 2, reference 3397Original colors & callouts · Select to enlarge

Are the resistances less than 3 ohms?

Yes

GO to D11

No

REPAIR the circuit in question.

D11 CHECK THE STEERING COLUMN LOCK MODULE GROUND CIRCUIT FOR AN OPEN

Ignition OFF. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C2434-3

Ground

Is the resistance less than 3 ohms?

Yes

GO to D12

No

REPAIR the circuit.

D12 CHECK THE STEERING COLUMN LOCK MODULE LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR A SHORT TO VOLTAGE

Connect BCM C2280G. Ignition ON. Disconnect BCM C2280B. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C2434-4

Ground
