Steering Wheel and Column Electrical Components — 2016 workshop reference 3396

Positive Lead Measurement / Action Negative Lead Ground Steering column lock module relay, cavity 3

Original table alignment retained · Scroll horizontally if needed

Steering Wheel and Column Electrical Components — original illustration 1, reference 3396Original colors & callouts · Select to enlarge

Is the voltage greater than 11 volts?

Yes	GO to D9
No	VERIFY the BJB fuse 19 (20A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams manual to identify the possible cause of the circuit short.

D9 CHECK THE STEERING COLUMN LOCK MODULE VOLTAGE SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE

Disconnect BCM C2280G. Disconnect Steering Column Lock Module C2434. Ignition ON. Measure:

Positive Lead Measurement / Action Negative Lead Ground Steering column lock module relay, cavity 5

Original table alignment retained · Scroll horizontally if needed

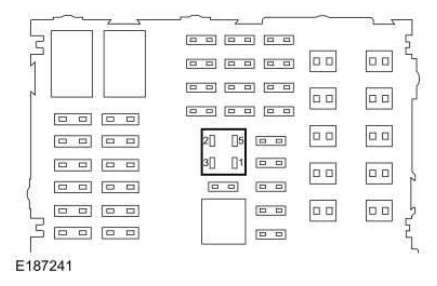

Steering Wheel and Column Electrical Components — original illustration 2, reference 3396Original colors & callouts · Select to enlarge

Is any voltage present?

Yes	REPAIR the circuit.
No	GO to D10

D10 CHECK THE STEERING COLUMN LOCK MODULE VOLTAGE SUPPLY CIRCUIT FOR AN OPEN

Ignition OFF. Measure:

Positive Lead	Measurement / Action	Negative Lead

Source reference 3396
