Steering Wheel Multifunction Switch — 2016 workshop reference 3410

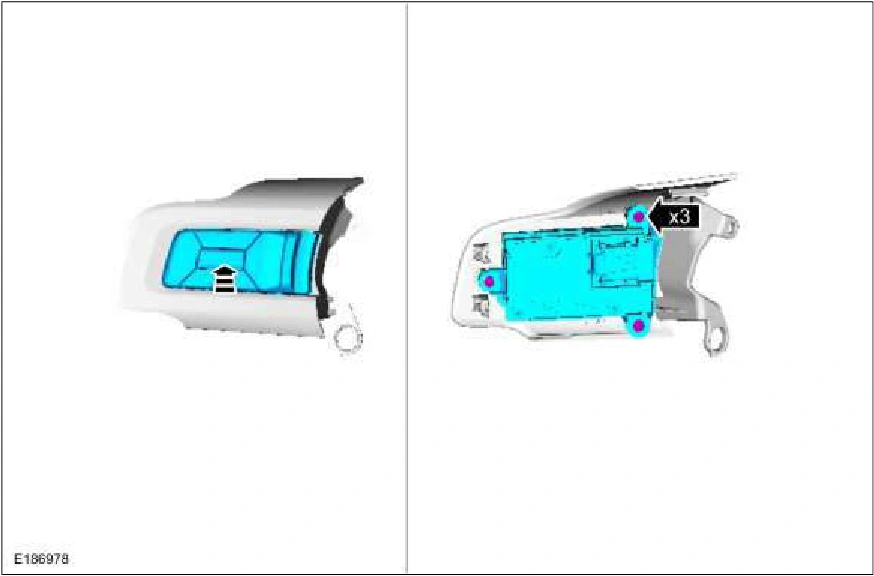

Steering Wheel Multifunction Switch — original illustration 1, reference 3410Original colors & callouts · Select to enlarge

Lower steering wheel switch

Step 4

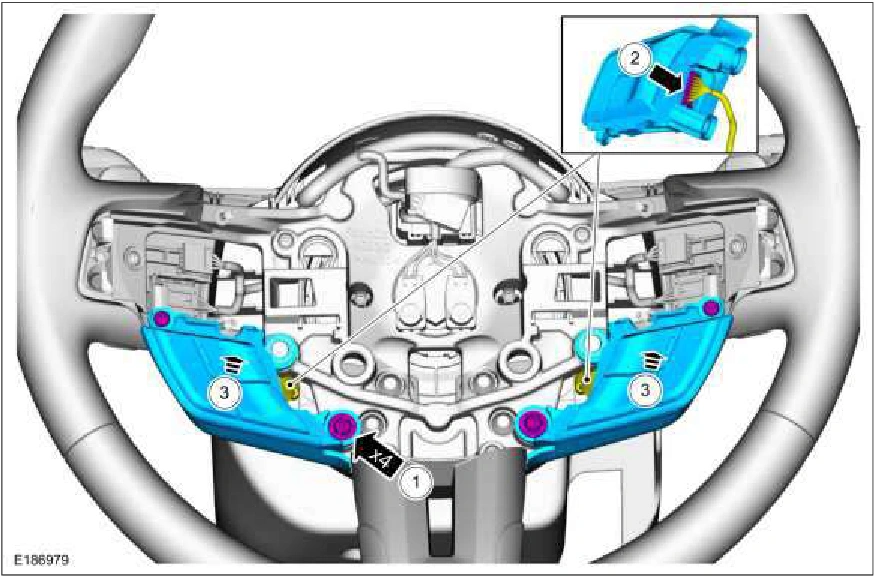

1. Remove the retainers. Torque : 44 lb.in (5 Nm)

2. Disconnect the electrical connectors.

3. Remove the lower steering wheel switches.

Steering Wheel Multifunction Switch — original illustration 2, reference 3410Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3410
