Steering Column Multifunction Switch RH

211-05 Steering Wheel and Column Electrical Components 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Removal

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

NOTICE: Make sure the component terminals are not bent or damaged.

2. NOTE: The steering wheel is removed for clarity.

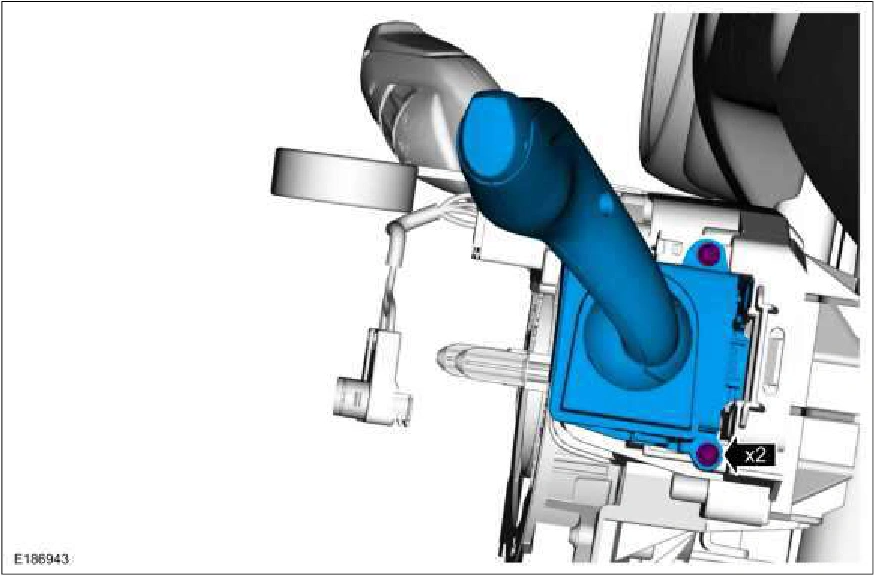

Remove the retainers and the RH steering column multifunction switch. Torque : 9 lb.in (1 Nm)

Steering Column Multifunction Switch RH — original illustration 1, reference 3408Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3408
