211-05 Steering Wheel and Column Electrical Components 2016 Mustang

Removal and Installation Procedure revision date: 04/29/2015

Steering Column Lock Module

Special Tool(s) / General Equipment

Center Punch

Removal

NOTE: LHD shown, RHD similar.

1. NOTE: This step is only necessary when installing a new component.

NOTE: Prior to the removal of the steering column lock module , it is necessary to upload the BCM configuration information to the scan tool. This information must be downloaded back into the same BCM after installation of a new steering column lock module in order to establish the correct configuration of the BCM into the new steering column lock module.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

2. Remove the driver knee airbag. Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

3. Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

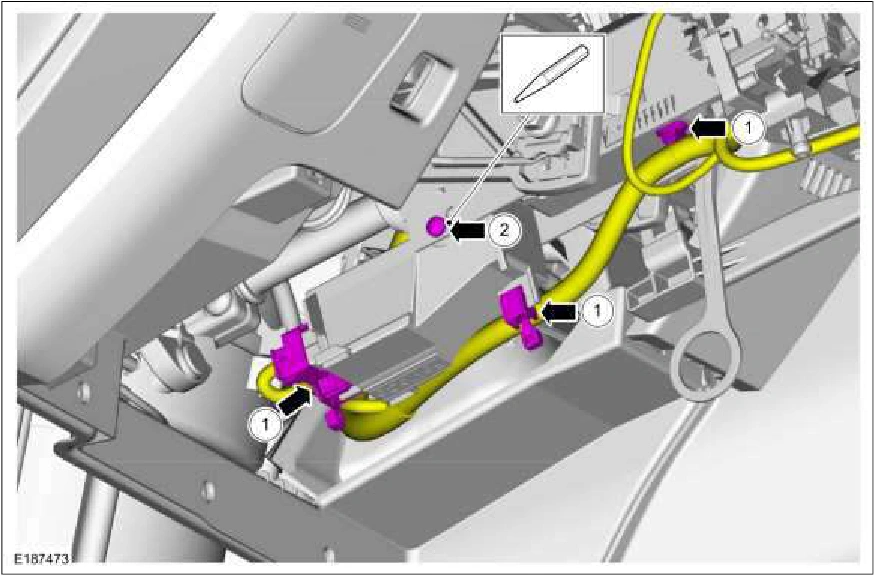

Step 4

1. Release the retainers and detach the steering column lock module electrical connectors.

2. Using a center punch, partially push out the retainers on both sides. Use the General Equipment: Center Punch

Steering Column Lock Module — original illustration 1, reference 3405Original colors & callouts · Select to enlarge

5. Remove the retainers from the both sides and the steering column lock module.
